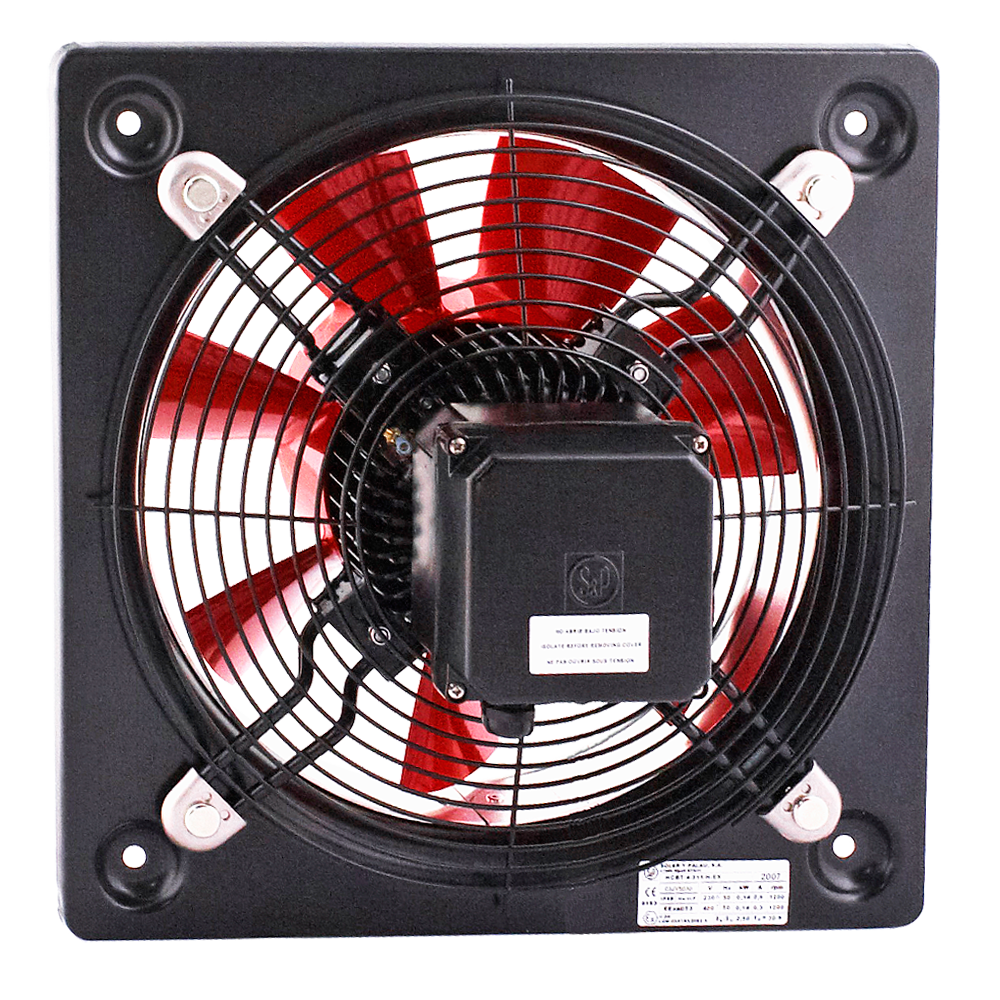

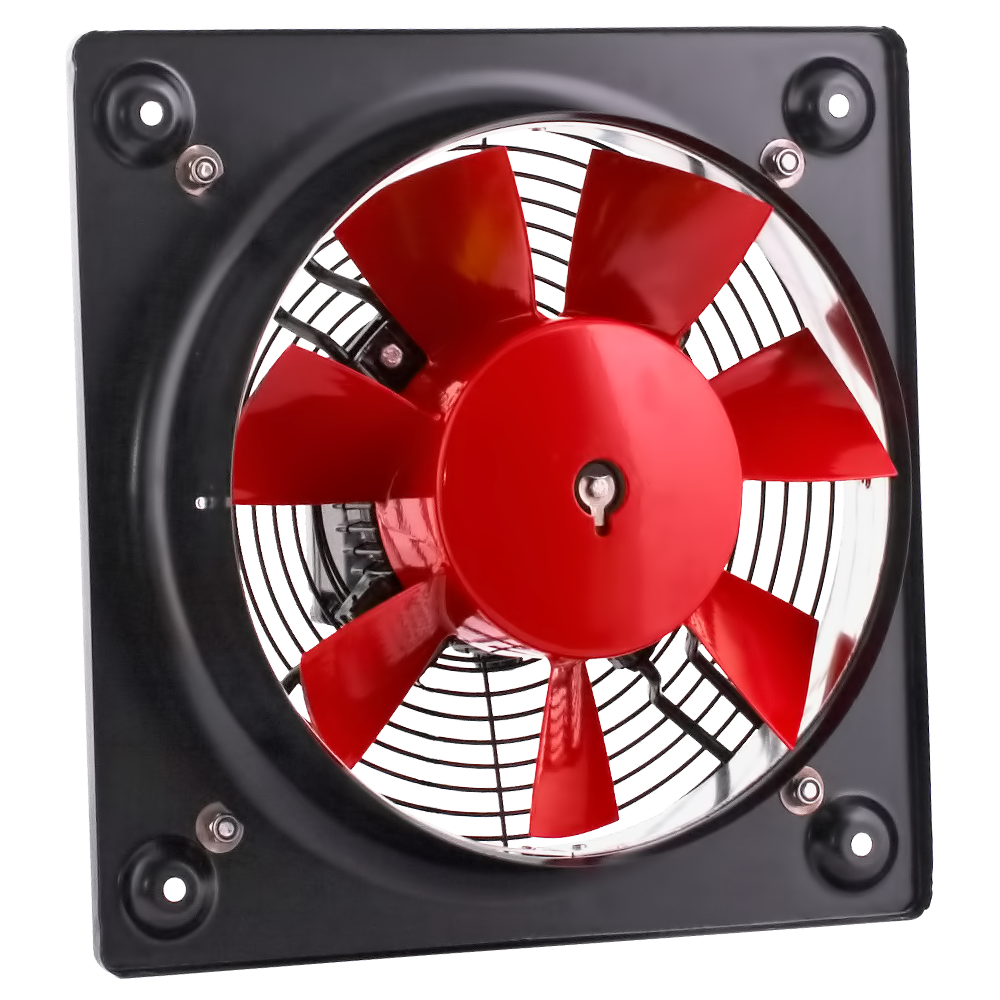

HCBT EX - ATEX ventilator

HCBT EX

ATEX ventilator

Reihe von flachen Axialventilatoren, die mit Aluminiumlaufrädern ausgestattet sind. Explosionsgeschützte Ausführungen gemäß ATEX-Richtlinie.
Fragen Sie nach einem Produkt

Construction

Working temperatures for ATEX versions:

  • -20ºC to +55ºC (models HCBT/4-315 to HCBT/4-710, models HCBT/6-450 to HCBT 6-710)
  • -20ºC to +40ºC (model HCBT/4-800 to 1000, model HCBT/6-800 to 1000)

Motor

On request, explosion proof versions in accordance with ATEX Directive, for three phase models.

  • Motors IP55, Class F



  • ATEX Flameproof-Gas:
    In standard ATEX version flameproof motors are without thermal protection.
    If used with frequency inverter, flameproof motors with a PTC-type thermal protection must be specified at order.
    For models 800 to 1000mm:
    II 2G Ex d IIB T4
    II 2G Ex d IIB+H2 T4 (with Ex d IIC T4 motor)



  • ATEX Increased safety-Gas:
    Except models HCBT/ 4-250, HCBT/ 6-355, HCBT/ 6-400
    Available model HCBT/ 6-400 with 230/400 V motor
    Available models to HCBT-1000
    II 2G Ex e II T3



  • ATEX Dust:
    In standard ATEX version, ATEX motors for dust are without thermal protection.
    If used with frequency inverter, ATEX motors for dust with a PTC-type thermal protection must be specified at order.
    For models 800 to 1000mm
    Suspended flammable particles and non-conductive dust:
    II 3D Ex tc IIIB T125ºC
    Conductive dust:
    II 3D Ex tc IIIC T125ºC (with IP65 motor)

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C F J K L M ØD ØE ØG
  mm mm mm mm mm mm mm mm mm mm mm
HCBT/4-315/H EXEIIT3 400 330 280 122 32 68 12 40 315 10 329
HCBT/4-355/H EXEIIT3 450 380 315 129 45 75 12 40 355 10 371
HCBT/4-400/H EXEIIT3 500 420 355 129 50.5 78 12 40 400 10 422
HCBT/4-450/H EXEIIT3 560 480 400 150 48 91 12 40 450 10 476
HCBT/4-500/H EXEIIT3 630 560 450 150 44.5 97 12 40 500 10 536
HCBT/4-560/H EXEIIT3 710 630 510 218.5 110.5 98.5 12 40 560 10 596
HCBT/4-630/H EXEIIT3 800 710 580 218.5 110.5 103 12 40 630 12 674
HCBT/4-710/H EXEIIT3 900 800 636 218.5 134 91.5 16.5 40 710 12 733
HCBT/6-450/H EXEIIT3 560 480 400 150 48 91 12 40 450 10 476
HCBT/6-500/H EXEIIT3 630 560 450 150 44.5 97 12 40 500 10 536
HCBT/6-560/H EXEIIT3 710 630 510 150 42 98.5 12 40 560 10 596
HCBT/6-630/H EXEIIT3 800 710 580 150 41 103 12 40 630 12 674
HCBT/6-710/H EXEIIT3 900 800 636 218.5 134 91.5 16.5 40 710 12 733
Typ J C_H C_L ØD ØG sq_A sq_B ØF_H ØF_L
  mm mm mm mm mm mm mm mm mm
HCBT/4-800/L-X-1.5 EXEIIT3 92 380 345 800 926 1000 800 203 181
HCBT/4-800/H-X-3 EXEIIT3 92 380 345 800 926 1000 800 203 181
HCBT/4-900/H-X-5.5 EXEIIT3 120 439 392 900 1060 1120 900 280 203
HCBT/4-1000/L-X-3 EXEIIT3 110 380 380 1000 1154 1250 1000 280 203
HCBT/4-1000/H-X-5.5 EXEIIT3 110 380 380 1000 1154 1250 1000 280 203
HCBT/6-800/L-X-0.55 EXEIIT3 92 345 310 800 926 1000 800 181 162
HCBT/6-800/H-X-0.75 EXEIIT3 92 345 310 800 926 1000 800 181 162
HCBT/6-1000/L-X-1.1 EXEIIT3 110 380 345 1000 1154 1250 1000 203 181
HCBT/6-1000/H-X-1.5 EXEIIT3 110 380 345 1000 1154 1250 1000 203 181
