PBMV

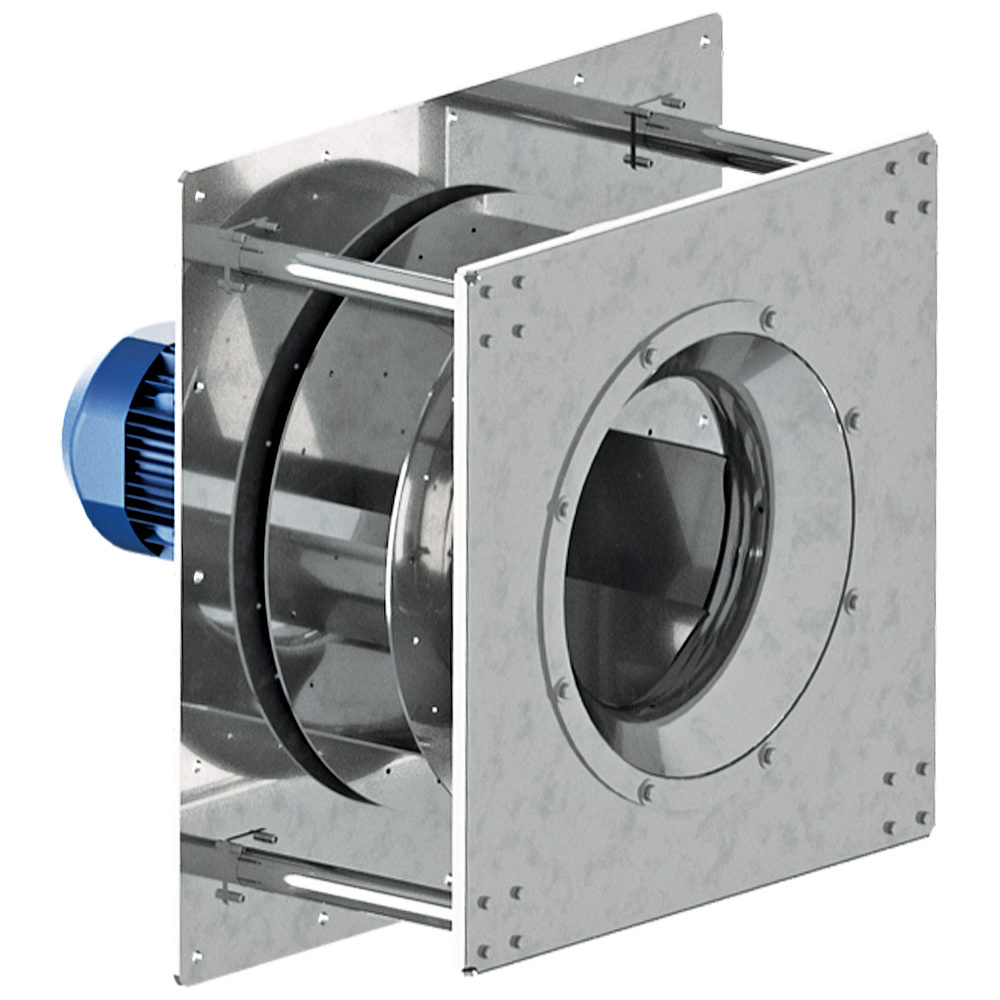

Radialventilator
Radialventilator ohne Gehäuse zum Transport von sauberer oder leicht bestäubter Luft. Typische Anwendungen sind Trocknungssysteme und Umwelttechnik.
Neu im Angebot von
Ventur
Ventur
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
als der Standardfarbe zu malen
APPLICATION
Radial fan without housing, dedicated to clean or lightly polluted air transport. Examples of use:
- air handling units,
- drying systems,
- recirculation systems,
- spray chambers.
CONSTRUCTION
- directly driven radial fan,
- aluminium impeller with back curved blades, dynamically balanced according to ISO ISO 21940-1,
- fan adapted to horizontal installation,
- aluminium fan with base elements made of steel painted grey RAL 7042,
- fan working temperature range from -20oC to +40oC,
- inlet cone equipped with 4 pressure measuring nipples Ø6mm evenly distributed in inlet circumference near the impeller.
MOTOR
- asynchronous, three-phase, 230/400V 50Hz or 400/690V 50Hz,
- degree of protection IP55,
- insulation class F,
- adapted for frequency converter.
SPECIAL EXECUTIONS
- colour other than standard,
- motor with voltage and frequency of power different than standard,
- motor with other than standard degree of protection,
- fan working temperature range below -20oC and above +40oC.
Arbeitseigenschaften
Größe
| Typ | A | B | C | G | H | I | M | ØD | ØE | ØF |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| PBMV-2-250-055T | 500 | 450 | 400 | 384 | 160 | 216 | 6 | 200 | 225 | 250 |
| PBMV-2-280-110T | 500 | 450 | 400 | 444 | 170 | 266 | 6 | 225 | 250 | 270 |
| PBMV-2-315-150T | 600 | 550 | 500 | 498 | 190 | 299 | 6 | 300 | 250 | 275 |
| PBMV-2-355-300T | 600 | 550 | 500 | 525 | 216 | 299 | 6 | 340 | 310 | 280 |
| PBMV-4-355-037T | 600 | 550 | 500 | 525 | 216 | 299 | 6 | 340 | 310 | 280 |
| Typ | A | B | C | G | H | I | J | M | ØD | ØE | ØF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| PBMV-2-400-550T | 700 | 650 | 600 | 572 | 240 | 322 | 325 | 6 | 315 | 340 | 365 |
| PBMV-4-400-075T | 700 | 650 | 600 | 572 | 240 | 322 | 325 | 6 | 315 | 340 | 365 |
| PBMV-2-450-1100T | 700 | 650 | 600 | 776 | 271 | 495 | 325 | 6 | 358 | 385 | 410 |
| PBMV-4-450-110T | 700 | 650 | 600 | 776 | 271 | 495 | 325 | 6 | 358 | 385 | 410 |
| PBMV-2-500-1500T | 750 | 700 | 650 | 807 | 301 | 495 | 350 | 8 | 400 | 435 | 460 |
| PBMV-4-500-220T | 750 | 700 | 650 | 807 | 301 | 495 | 350 | 8 | 400 | 435 | 460 |
| PBMV-4-560-300T | 800 | 750 | 700 | 704 | 336 | 357 | 375 | 8 | 450 | 485 | 510 |
| PBMV-6-560-150T | 800 | 750 | 700 | 704 | 336 | 357 | 375 | 8 | 450 | 485 | 510 |
| PBMV-4-630-550T | 900 | 850 | 800 | 801 | 381 | 409 | 425 | 8 | 500 | 530 | 560 |
| PBMV-6-630-220T | 900 | 850 | 800 | 801 | 381 | 409 | 425 | 8 | 500 | 530 | 560 |
| PBMV-4-710-1100T | 1000 | 950 | 900 | 932 | 426 | 495 | 475 | 8 | 560 | 600 | 630 |
| PBMV-6-710-300T | 1000 | 950 | 900 | 932 | 426 | 495 | 475 | 8 | 560 | 600 | 630 |
| PBMV-4-800-1850T | 1100 | 1050 | 1000 | 1044 | 476 | 557 | 525 | 8 | 630 | 670 | 700 |
| PBMV-6-800-550T | 1100 | 1050 | 1000 | 1044 | 476 | 557 | 525 | 8 | 630 | 670 | 700 |
