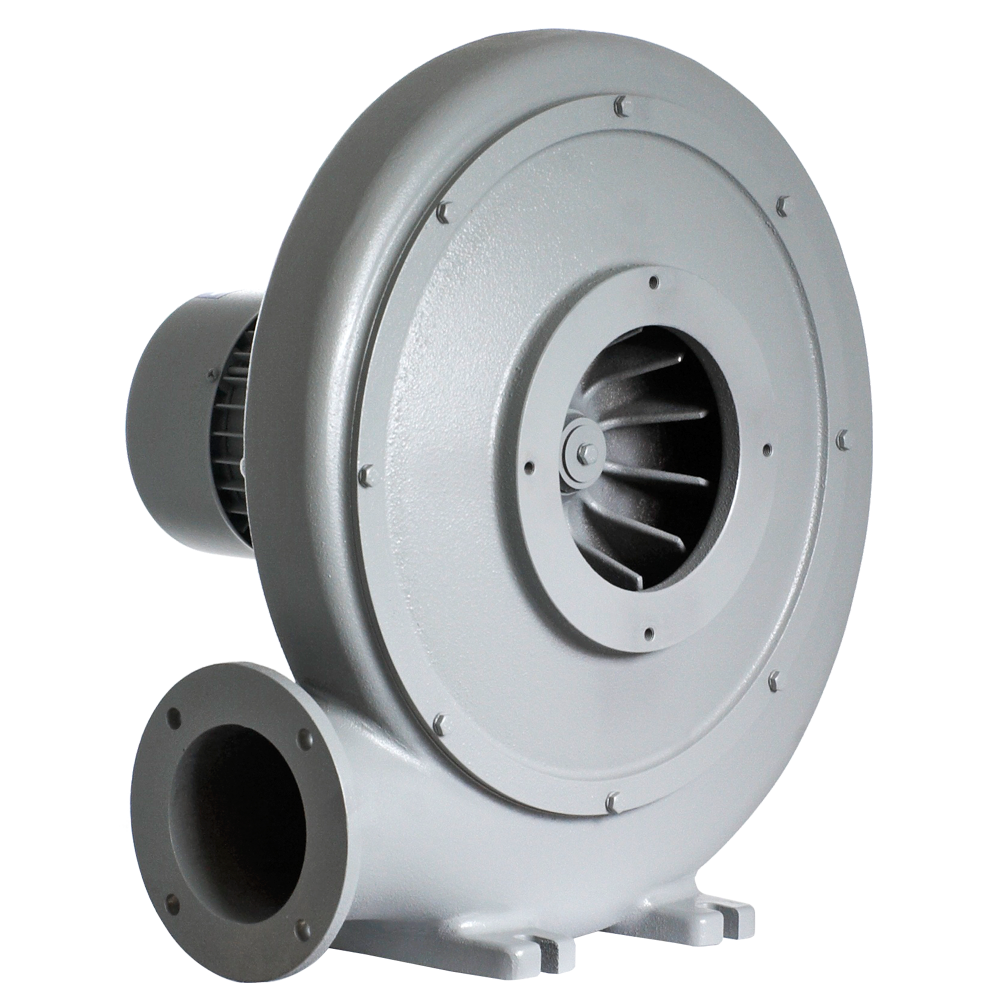

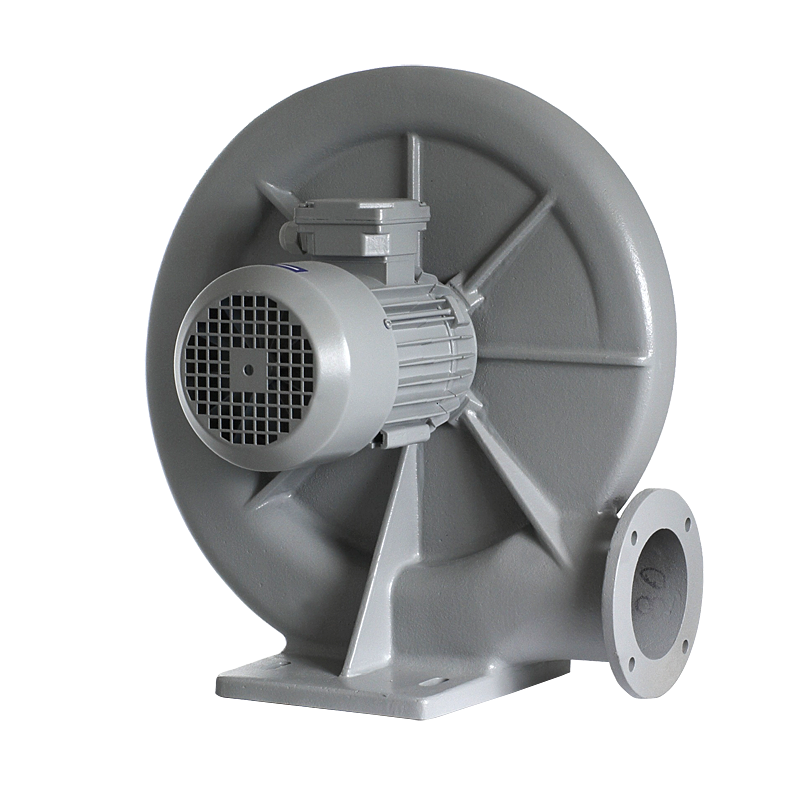

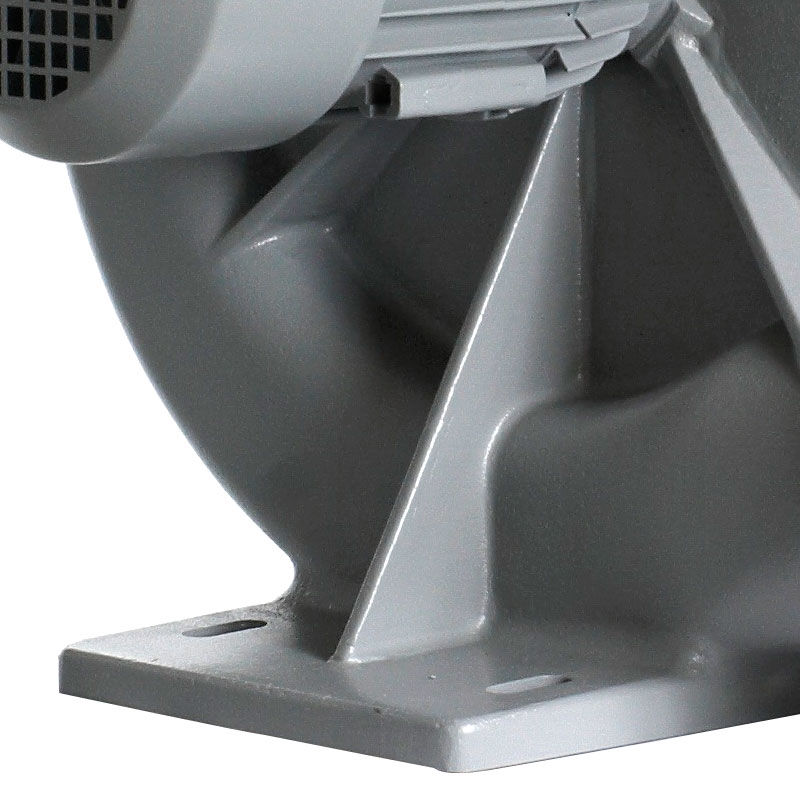

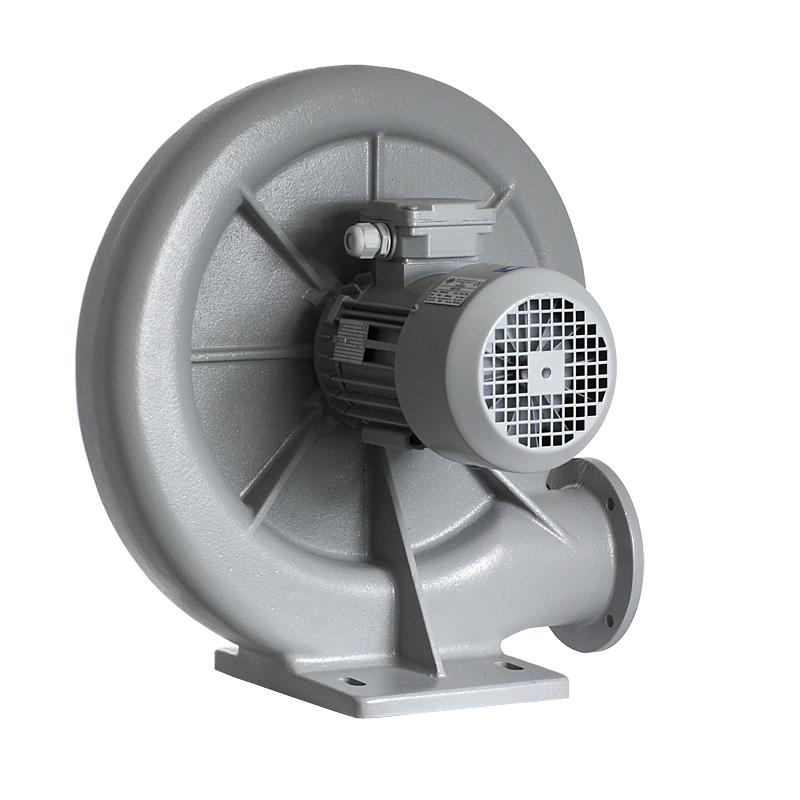

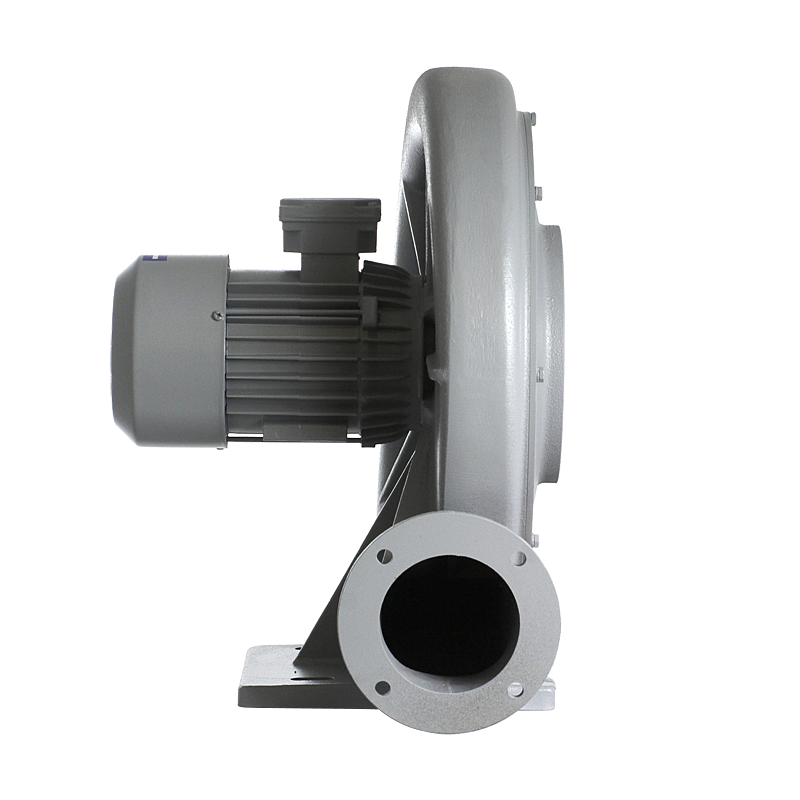

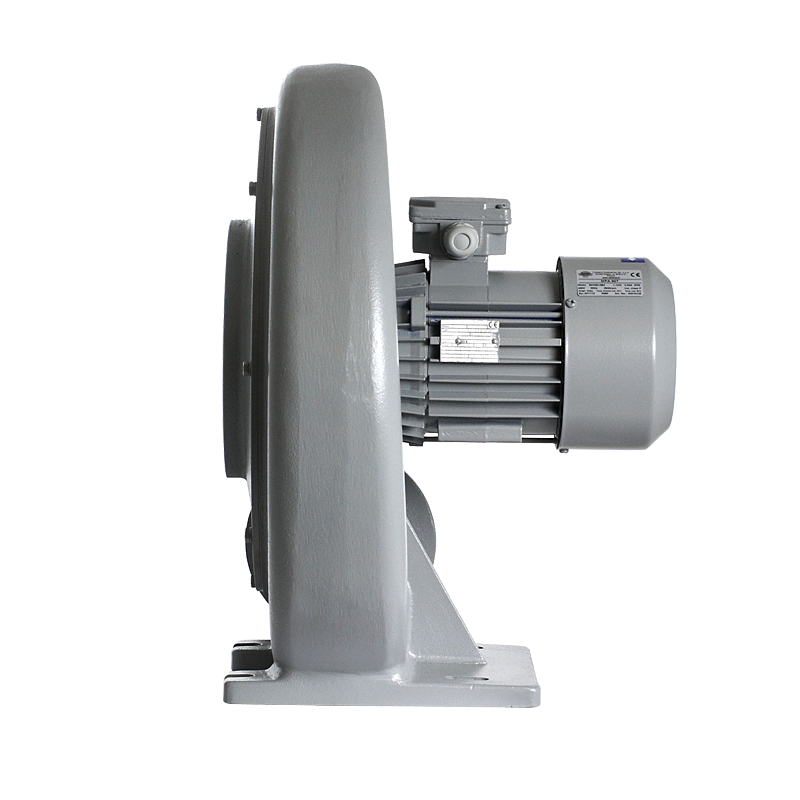

MPA - Radialventilator

MPA

Radialventilator

Die Lüfter der Baureihe MPA finden breite Anwendung in den Abzugssystemen für verunreinigte Luft und bei der Druckluftförderung.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
Fragen Sie nach einem Produkt

APPLICATION

Fan dedicated to polluted air exhaust systems and pneumatic transport. Examples of use:

  • local exhaust systems, dehumidifiers, drying systems,
  • transport of shavings, sawdust, granulates,
  • combustion gases exhaustion systems.

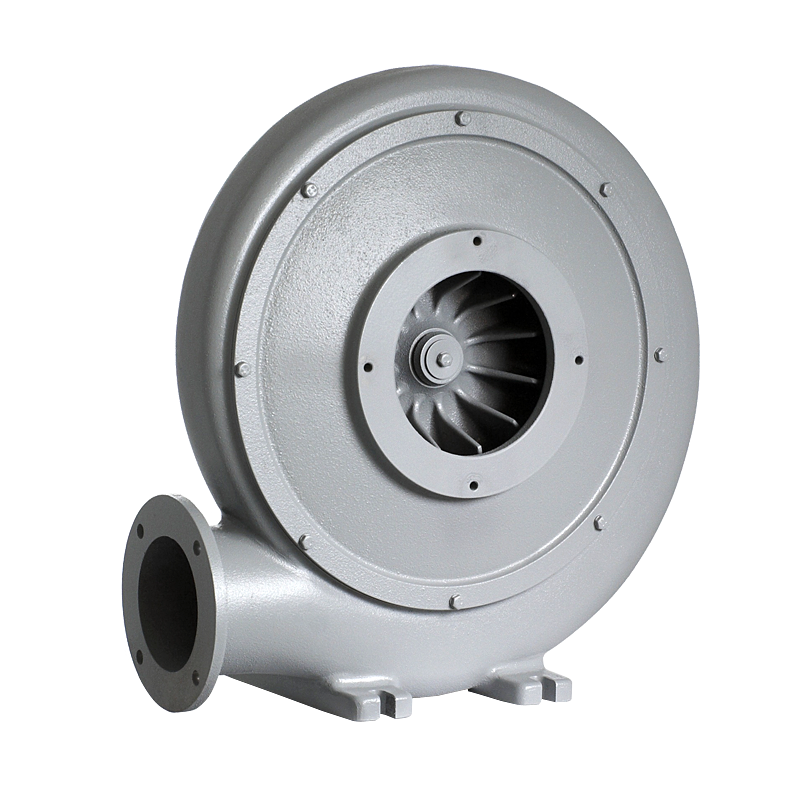

CONSTRUCTION

  • medium-pressure, directly driven centrifugal fans,
  • the impeller is made of aluminum alloy, provided with straight blades is dynamically balanced according to ISO 1940-1 (in models to 290, in models from 350 and 600 the impeller is welded of steel sheet),

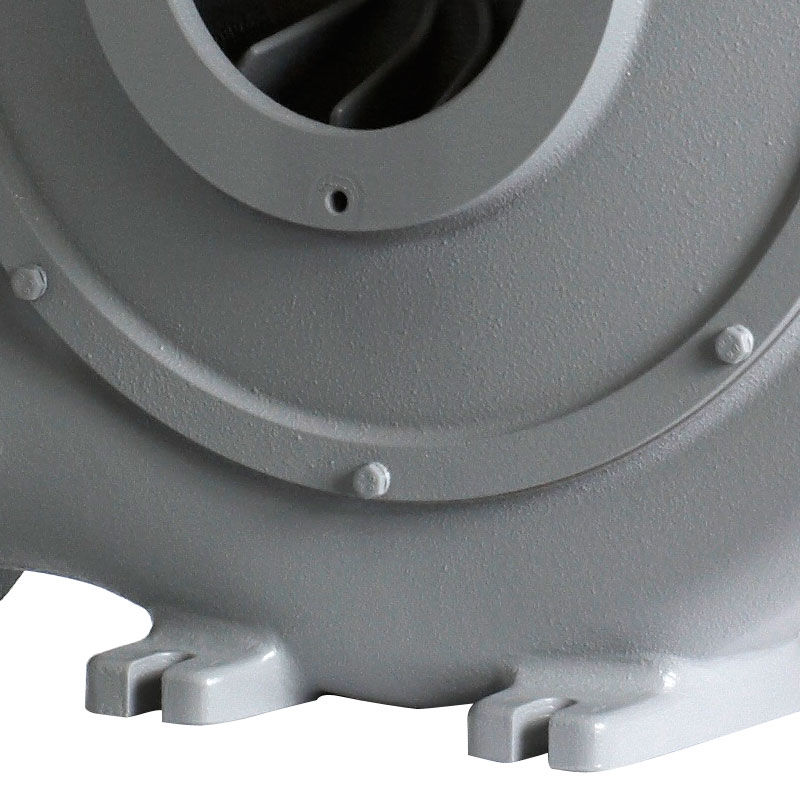

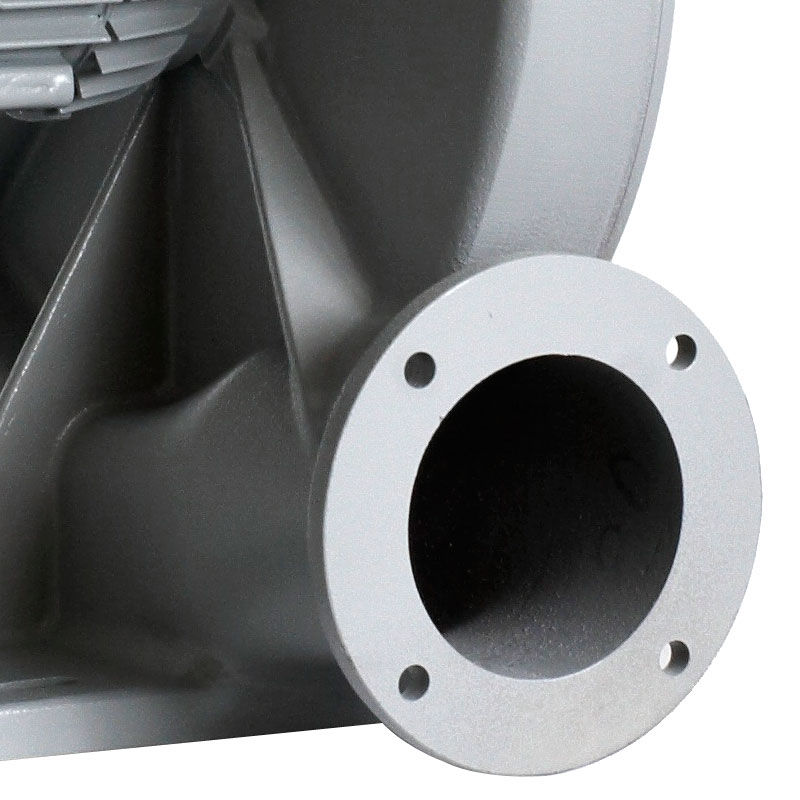

  • the housing is cast in aluminum alloy,
  • motor support in the 600 model,
  • galvanized mesh on inlet in models 200 and 600
  • standard color of the fan is gray RAL 7042,
  • maximum temperature of the transported medium is 80oC,
  • ambient temperature range from -20oC to +40oC,
  • figure LG270 (model 350 in the figure RD270).

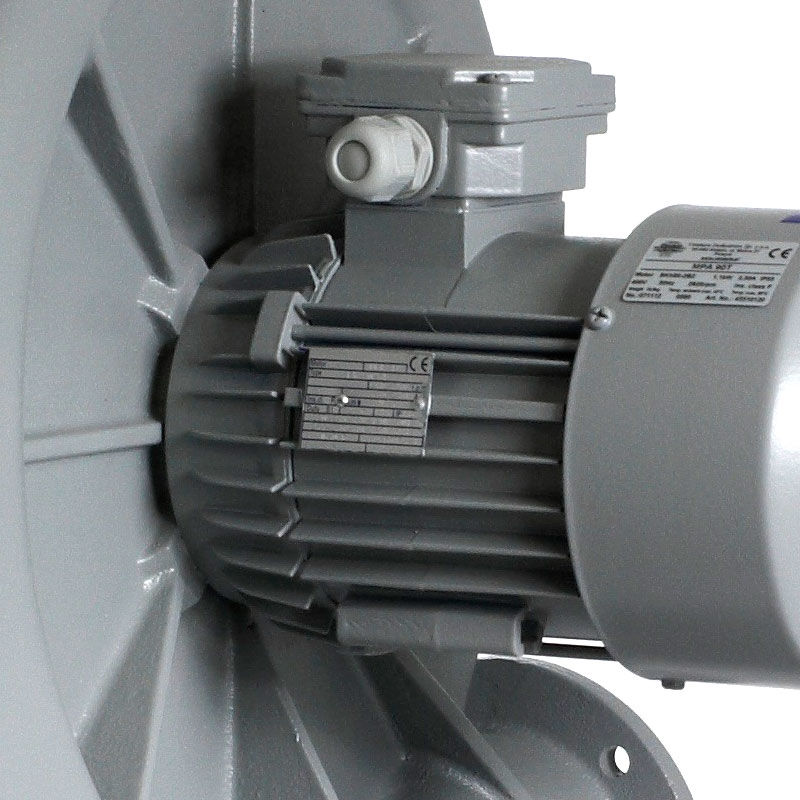

MOTOR

  • asynchronous single-phase 230V 50Hz,
  • asynchronous, three-phase 230V/400V 50Hz,
  • asynchronous, three-phase 400V/690V 50Hz,
  • degree of protection IP55,
  • insulation class F,
  • three-phase motors are adapted for frequency converter.

SPECIAL EXECUTIONS

  • optional configuration LG/RD (in models from 160 to 290),
  • color other than standard,
  • painting in higher category of corrosivity,
  • impeller made of galvanized steel sheet,
  • impeller made of 1.4301 stainless steel sheet,
  • impeller made of acid-resistant steel sheet 1.4404,
  • motor with voltage and frequency of power different than standard,
  • single-phase motor adapted to voltage regulation,
  • motor with other than standard degree of protection,
  • motor equipped with sensors or additional cooling,
  • sealing between the housing and the motor,
  • maximum temperature of the transported medium above 80oC,
  • ambient temperature range below -20oC and above +40oC.

Technischer Support

Katalogkarte

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 03S 327 333 243 160 174 58 62 4 19
MPA 03T 327 333 243 160 174 58 62 4 19
MPA 25S 327 333 257 160 174 58 62 4 19
MPA 25T 327 333 257 160 174 58 62 4 19
MPA 40S 433 464 295 200 246 65 76 4 20
MPA 40T 433 464 295 200 246 65 76 4 20
MPA 50S 433 464 331 200 246 65 76 4 20
MPA 50T 433 464 331 200 246 65 76 4 20
MPA 60S 451 483 335 210 258 91 58 4 20
MPA 60T 451 483 335 210 258 91 58 4 20
MPA 70S 451 483 335 210 258 91 58 4 20
MPA 70T 451 483 335 210 258 91 58 4 20
MPA 80S 450 483 341 210 261 82 85 4 20
MPA 80T 450 483 341 210 261 82 85 4 20
MPA 90S 450 483 341 210 261 82 85 4 20
MPA 90T 450 483 341 210 261 82 85 4 20
Typ Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 03S 12 30 108 159 180 80 120 4
MPA 03T 12 30 108 159 180 80 120 4
MPA 25S 12 30 108 159 180 80 120 4
MPA 25T 12 30 108 159 180 80 120 4
MPA 40S 13 45 155 215 230 140 190 4
MPA 40T 13 45 155 215 230 140 190 4
MPA 50S 13 45 155 215 230 140 190 4
MPA 50T 13 45 155 215 230 140 190 4
MPA 60S 13 47 156 215 230 140 200 4
MPA 60T 13 47 156 215 230 140 200 4
MPA 70S 13 47 156 215 230 140 200 4
MPA 70T 13 47 156 215 230 140 200 4
MPA 80S 13 45 155 225 240 140 190 4
MPA 80T 13 45 155 225 240 140 190 4
MPA 90S 13 45 155 225 240 140 190 4
MPA 90T 13 45 155 225 240 140 190 4
Typ Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 03S 10 8 165 139 100 115 95 65
MPA 03T 10 8 165 139 100 115 95 65
MPA 25S 10 8 165 139 100 115 95 65
MPA 25T 10 8 165 139 100 115 95 65
MPA 40S 11 8 165 139 107 130 112 80
MPA 40T 11 8 165 139 107 130 112 80
MPA 50S 11 8 165 139 107 130 112 80
MPA 50T 11 8 165 139 107 130 112 80
MPA 60S 9.5 8 200 182 162 165 139 100
MPA 60T 9.5 8 200 182 162 165 139 100
MPA 70S 9.5 8 200 182 162 165 139 100
MPA 70T 9.5 8 200 182 162 165 139 100
MPA 80S 11 8 200 182 138 160 135 100
MPA 80T 11 8 200 182 138 160 135 100
MPA 90S 11 8 200 182 138 160 135 100
MPA 90T 11 8 200 182 138 160 135 100
Typ A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 160T 506 595 476 220 342 127 107 4 20
MPA 290T 617 708 523 280 410 170 133 20 20
Typ Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 160T 13 15 166 250 291 180 210 4
MPA 290T 13 16 166 250 295 180 215 13
Typ Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 160T 12 12 250 220 170 200 168 125
MPA 290T 13 9.5 245 217 180 260 230 179
Typ A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 200T 506 595 476 220 342 127 107 4 20
Typ Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 200T 13 15 166 250 291 180 210 4
Typ Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 200T 12 12 250 220 170 200 168 125
Typ A B C E F S T X N1
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 850 914 734 395 560 210 121 4 50
Typ N2 N3 N4 N5 P1 P2 P3 X1 X2
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 350 571 650 700 350 415 460 8 6
Typ Ø0 Ø01 Ø02 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm mm
MPA 600T 15kW 14 9 14 280 260 212 270 240 180
Typ A B C E F S T X Y
  mm mm mm mm mm mm mm mm mm
MPA 350T 617 708 582 280 410 170 133 4 20
Typ Z N1 N2 N3 N4 P1 P2 X1
  mm mm mm mm mm mm mm mm
MPA 350T 13 16 166 250 295 180 215 8
Typ Ø0 Ø01 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 350T 13 9.5 245 217 180 260 230 170
Typ A B C E F S T X N1 N2
  mm mm mm mm mm mm mm mm mm mm
MPA 600T 11kW 850 920 688 395 500 150 117 4 30 290
Typ N3 N4 P1 P2 P3 X1 X2 Ø0
  mm mm mm mm mm mm mm mm
MPA 600T 11kW 320 476 326 390 430 8 4 14
Typ Ø01 Ø02 ØD1 ØD2 ØD3 Ød1 Ød2 Ød3
  mm mm mm mm mm mm mm mm
MPA 600T 11kW 9 13 280 260 212 270 240 180
