HBB - Radialventilator

HBB

Radialventilator

Transport der reinen Luft. Die radialen Hochdrucklüfter mit Direktantrieb. Das Gehäuse aus Stahlblech geschweißt. Das Lüfterrad mit den nach vorne gerichteten
Fragen Sie nach einem Produkt

APPLICATION

Fan designed for transporting non-aggressive and non-explosive gases without contamination. Typical applications:

  • pneumatic transport,
  • blowing in drying systems (e.g. graphic machines, plastic processing),
  • air blowing systems in combustion / heat treatment systems (e.g. melting furnaces),
  • air transport in ventilation installations and technological lines.

CONSTRUCTION

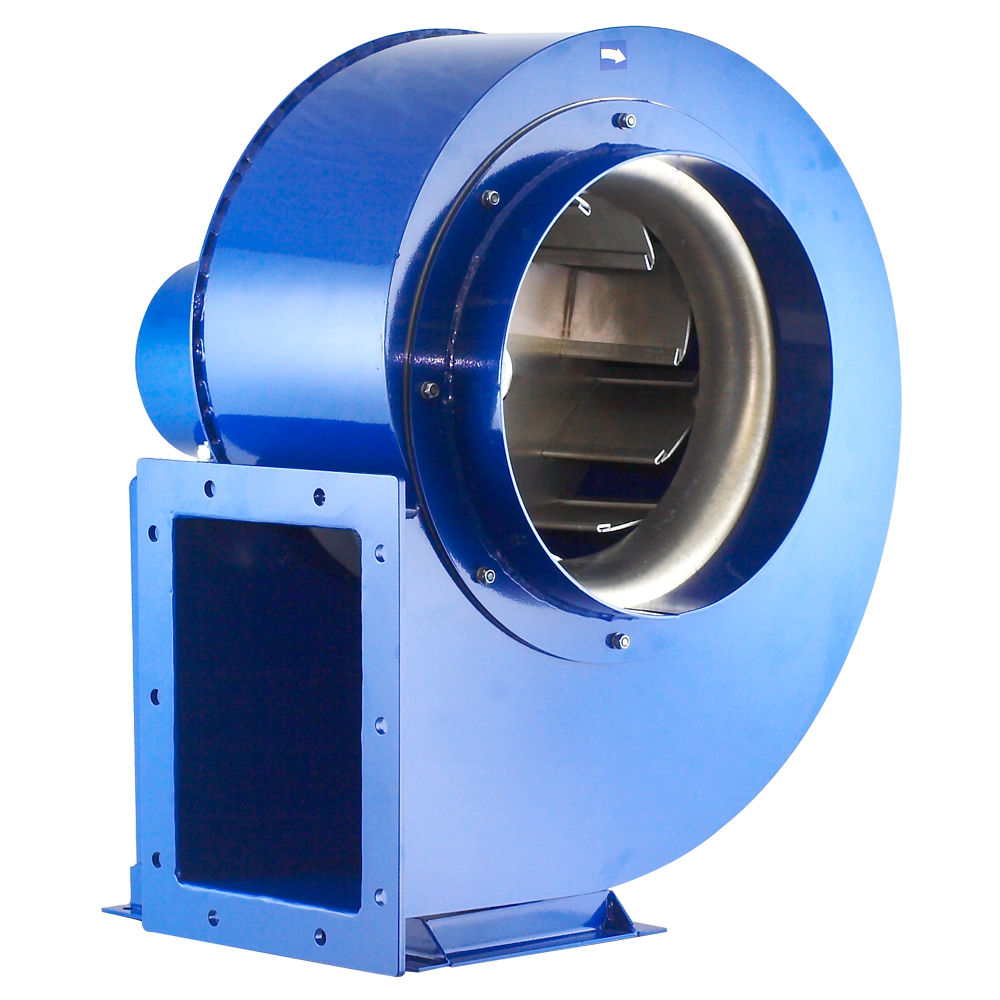

  • high-pressure, centrifugal fan with direct drive,
  • the impeller is welded from galvanized steel sheet with backward curved blades, dynamically balanced in accordance with ISO1940-1,
  • welded sheet steel housing,
  • painted in RAL 5010 (corrosivity category C3),
  • maximum medium temperature 80°C,
  • ambient temperature range from -20°C to +40°C,
  • standard LG270 positions.

MOTOR

  • asynchronous, three-phase 230V/400V 50Hz (power to 2,2 kW),
  • asynchronous, three-phase 400V/690V 50Hz (power from 4 kW),
  • efficiency class IE3,
  • degree of protection IP55,
  • insulation class F,
  • three-phase motors are adapted for frequency converter.

ON REQUEST

  • different positions LG/RD,
  • painting in a different color,
  • painting in higher category of corrosivity,
  • maximum medium temperature above 80°C,
  • ambient temperature range below -20°C and above +40°C,
  • different motor voltage and frequency,
  • different motor degree of protection,
  • motor equipped with sensors or additional cooling,
  • radial shaft sealing.

Technischer Support

Katalogkarte

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Arbeitseigenschaften

Größe

Typ A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
HBB-2-355/53-110T 527 654 422 230 398 133 243 168 278
HBB-2-355/53-138T 527 654 422 230 398 133 243 168 278
Typ K L M S T X G1
  mm mm mm mm mm mm mm
HBB-2-355/53-110T 203 313 49 173.5 122 10 112
HBB-2-355/53-138T 203 313 49 173.5 122 10 112
Typ H1 N1 N2 N3 N4 N5 P1
  mm mm mm mm mm mm mm
HBB-2-355/53-110T 112 37 187 229 297 419 189
HBB-2-355/53-138T 112 37 187 229 297 419 189
Typ P2 P3 X2 ØD ØO ØD1 ØO2
  mm mm mm mm mm mm mm
HBB-2-355/53-110T 226 253 4 193 8 199 12
HBB-2-355/53-138T 226 253 4 193 8 199 12
Typ A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
HBB-2-400/63-220T 629 804 516 265 500 158 328 158 368
HBB-2-450/71-400T 675 821.3 550 300 499 133 243 168 278
HBB-2-500/85-750T 899 1003 677 452 609 201 400 229 448
HBB-2-560/95-1100T 786 940 781 359 560 201 323 251 363
Typ K L M S T X G1
  mm mm mm mm mm mm mm
HBB-2-400/63-220T 238 408 49 227 136 10 125
HBB-2-450/71-400T 203 313 50 215 140 10 112
HBB-2-500/85-750T 269 488 53 308 162.5 12 125
HBB-2-560/95-1100T 291 403 50 237 163 10 125
Typ H1 N1 N2 N3 N4 N5 P1
  mm mm mm mm mm mm mm
HBB-2-400/63-220T 125 31 221 361 411 497 196
HBB-2-450/71-400T 112 27 262 435 497 575 234
HBB-2-500/85-750T 125 25 225 542 575 705 308
HBB-2-560/95-1100T 125 46 371 618 696 781 365
Typ P2 P3 X2 ØD ØO ØD1 ØO2
  mm mm mm mm mm mm mm
HBB-2-400/63-220T 240 276 6 243 10 249 12
HBB-2-450/71-400T 280 314 6 308 10 315 15
HBB-2-500/85-750T 360 394 12 308 10 314 15
HBB-2-560/95-1100T 420 465 6 348 10 354 18
Typ A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
HBB-2-630/106-1850T 994 1254 849 425 780 224 500 294 573
HBB-2-630/106-2200T 994 1254 860 425 780 224 500 294 573
Typ K L M S T X G1
  mm mm mm mm mm mm mm
HBB-2-630/106-1850T 354 633 50 351 174 14 125
HBB-2-630/106-2200T 354 633 50 351 174 14 125
Typ H1 N1 N2 N3 N4 N5 P1
  mm mm mm mm mm mm mm
HBB-2-630/106-1850T 125 25 275 631 725 803 425
HBB-2-630/106-2200T 125 25 275 631 725 803 425
Typ P2 P3 X2 ØD ØO ØD1 ØO2
  mm mm mm mm mm mm mm
HBB-2-630/106-1850T 460 505 6 393 10 399 18
HBB-2-630/106-2200T 460 505 6 393 10 399 18
Typ A B C E F G H I J
  mm mm mm mm mm mm mm mm mm
HBB-2-710/85-2200T 1019 1291 862 443 805 208 531 270 592
HBB-2-710/106-3000T 1040 1259 972 500 780 234 508 284 558
Typ K L M S T X G1 H1
  mm mm mm mm mm mm mm mm
HBB-2-710/85-2200T 330 652 75 388 185 14 125 125
HBB-2-710/106-3000T 333 608 75 421 199 12 150 150
Typ N1 N2 N3 N4 N5 N6 N7 P1
  mm mm mm mm mm mm mm mm
HBB-2-710/85-2200T 36 436 683 836 868 428
HBB-2-710/106-3000T 100 475 755 850 930 954 546
Typ P2 P3 P4 X2 ØD ØO ØD1 ØO2
  mm mm mm mm mm mm mm mm
HBB-2-710/85-2200T 491 536 6 493 12 499 18
HBB-2-710/106-3000T 752 812 852 10 493 12 499 15
Typ A B C E F G H I J K
  mm mm mm mm mm mm mm mm mm mm
HBB-2-800/132-4500T 1117 1339 1238 510 800 327 459 367 499 407
HBB-2-800/132-5500T 1117 1339 1238 510 800 327 459 367 499 407
HBB-2-800/132-7500T 1117 1339 1238 510 800 327 459 367 499 407
Typ L M S T X G1 H1
  mm mm mm mm mm mm mm
HBB-2-800/132-4500T 539 51 339 222 16 100 100
HBB-2-800/132-5500T 539 51 339 222 16 100 100
HBB-2-800/132-7500T 539 51 339 222 16 100 100
Typ N1 N2 N3 N4 N5 N6 P1
  mm mm mm mm mm mm mm
HBB-2-800/132-4500T 100 450 900 968 1000 1189 684
HBB-2-800/132-5500T 100 450 900 968 1000 1189 684
HBB-2-800/132-7500T 100 450 900 968 1000 1189 684
Typ P2 P3 X2 ØD ØO ØD1 ØO2
  mm mm mm mm mm mm mm
HBB-2-800/132-4500T 750 812 6 710 12 716 21
HBB-2-800/132-5500T 750 812 6 710 12 716 21
HBB-2-800/132-7500T 750 812 6 710 12 716 21
