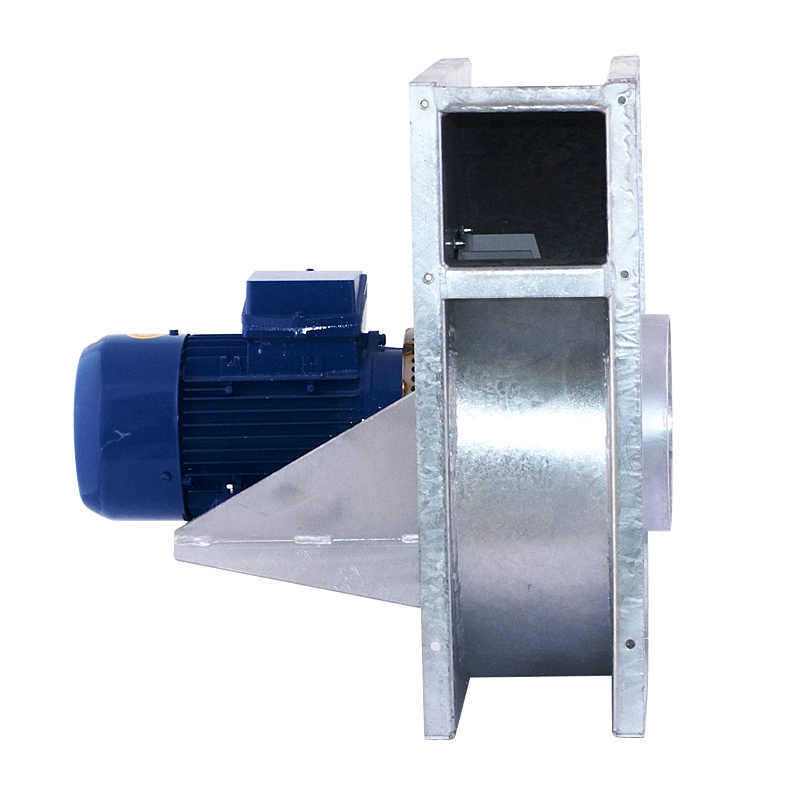

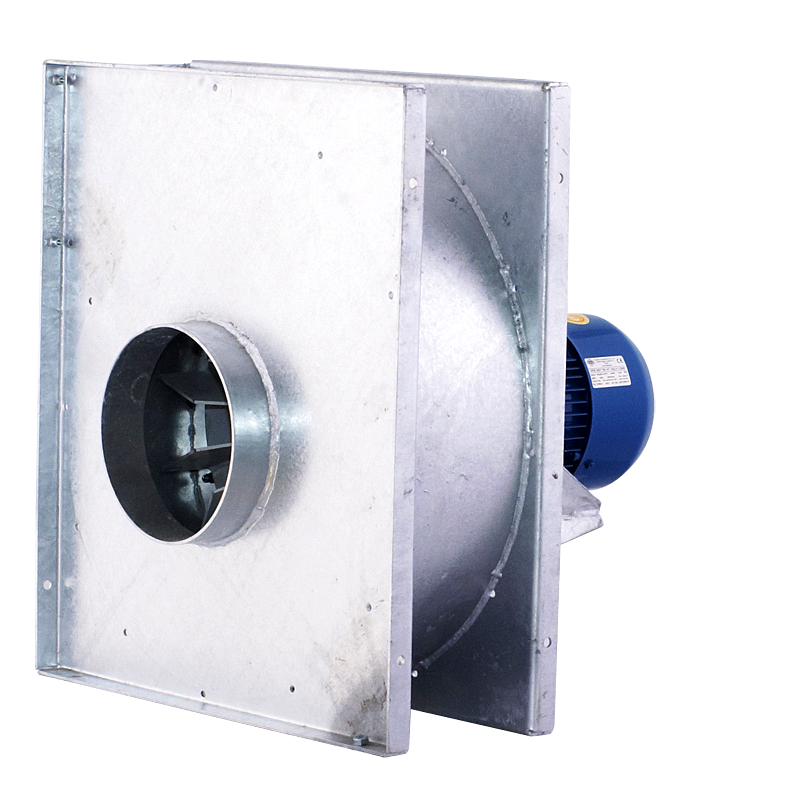

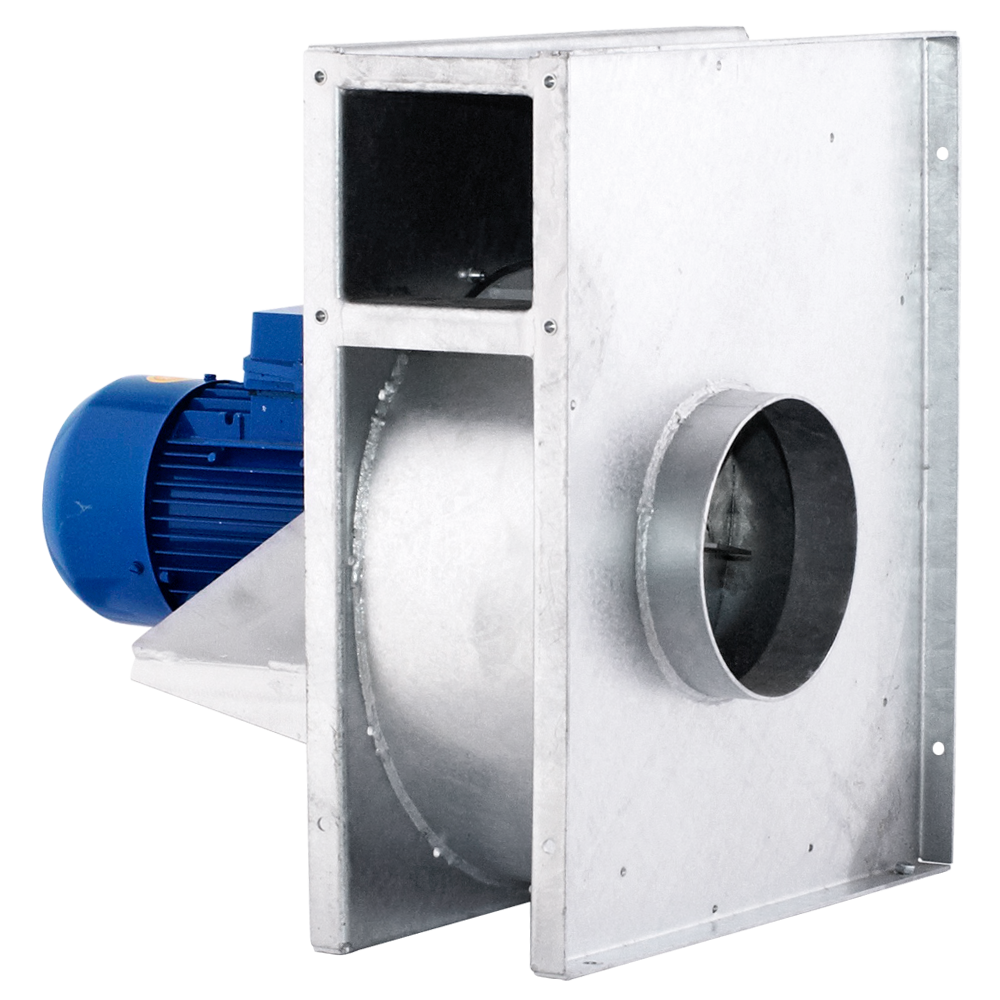

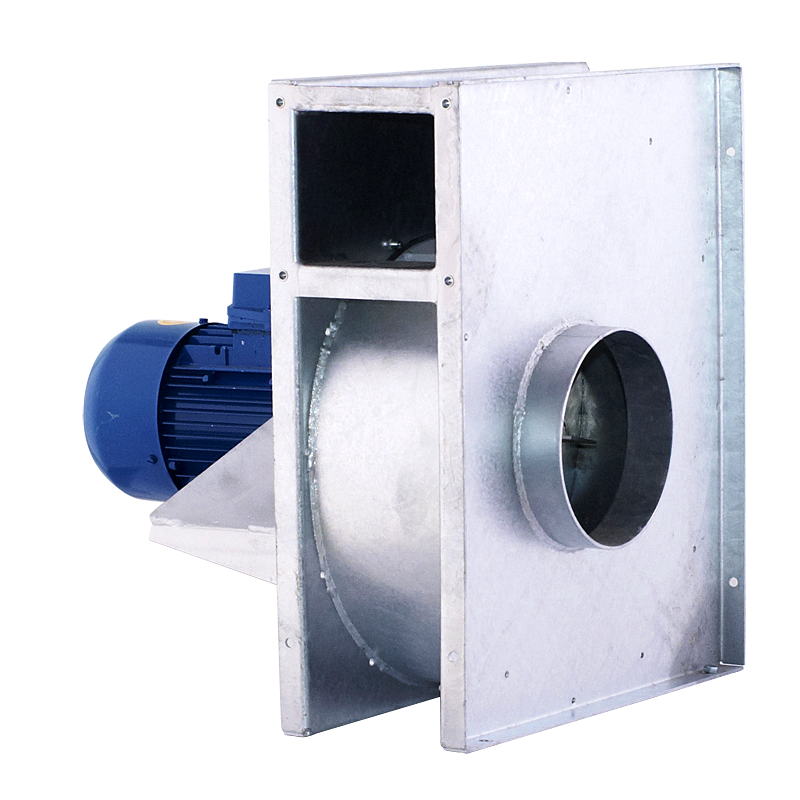

GMT-HT
Radialventilator
Die Lüfter der Baureihe MPB-HT sind für die Förderung der Luft mit einem hohen Verunreinigungsgrad und der Höchsttemperatur bis 250°C bestimmt. Sie können als Absauglüfter für Kesselabgase, zum Mischen der Luft in den Kammern verwendet werden.
Die Möglichkeit, in einer anderen
als der Standardfarbe zu malen
als der Standardfarbe zu malen
APPLICATION
Fan designed for polluted air exhaust systems with a maximum temperature of 250oC.
CONSTRUCTION
- medium-pressure, centrifugal fan with direct drive,

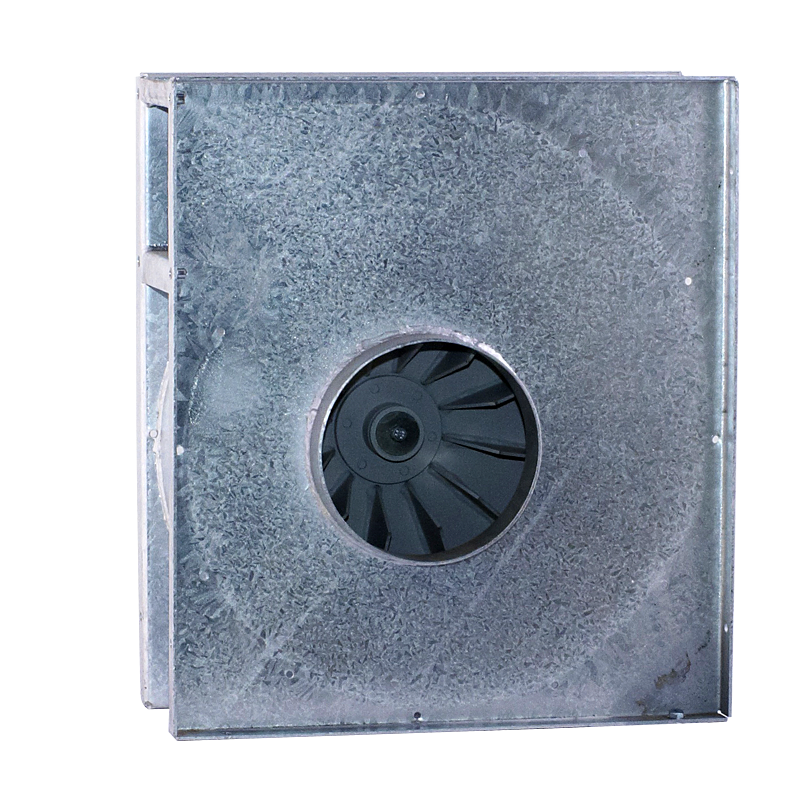

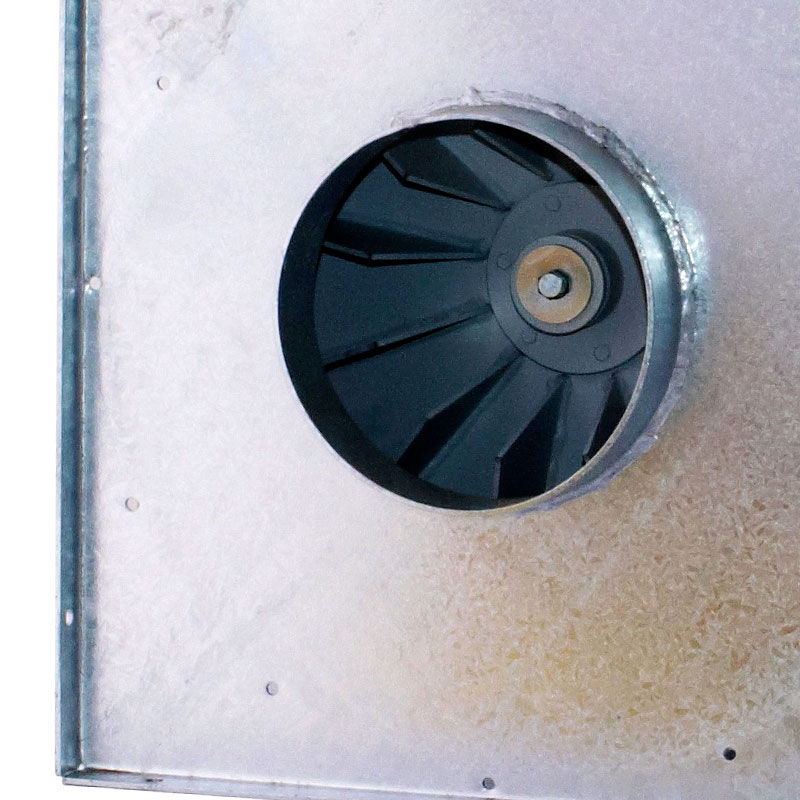

- impeller welded from steel sheet with straight blades, protected by primer RAL 7035, dynamically balanced in accordance with ISO1940-1,

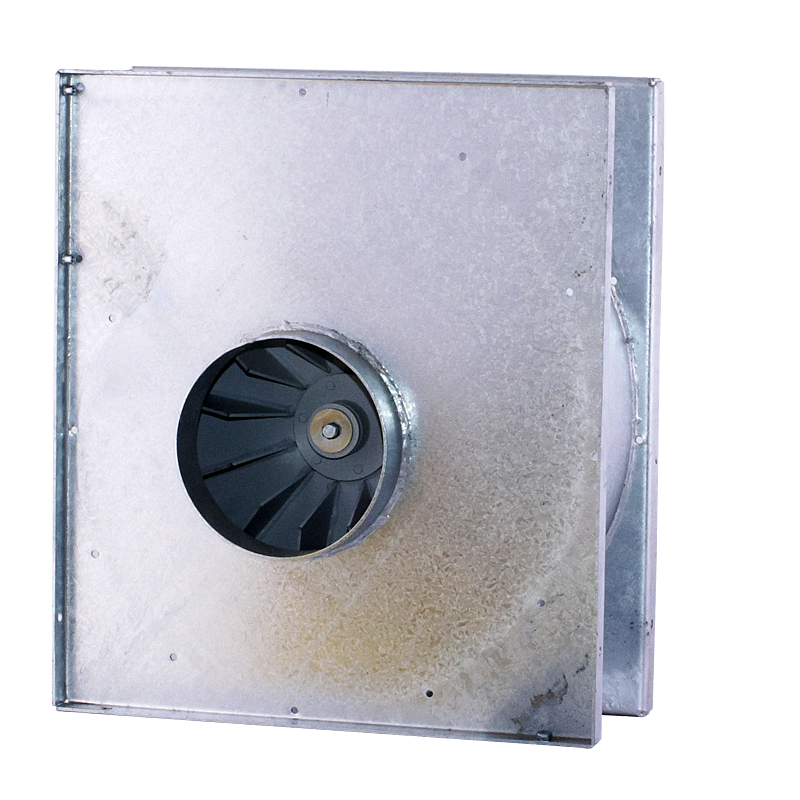

- hot dipped galvanized welded sheet steel housing,

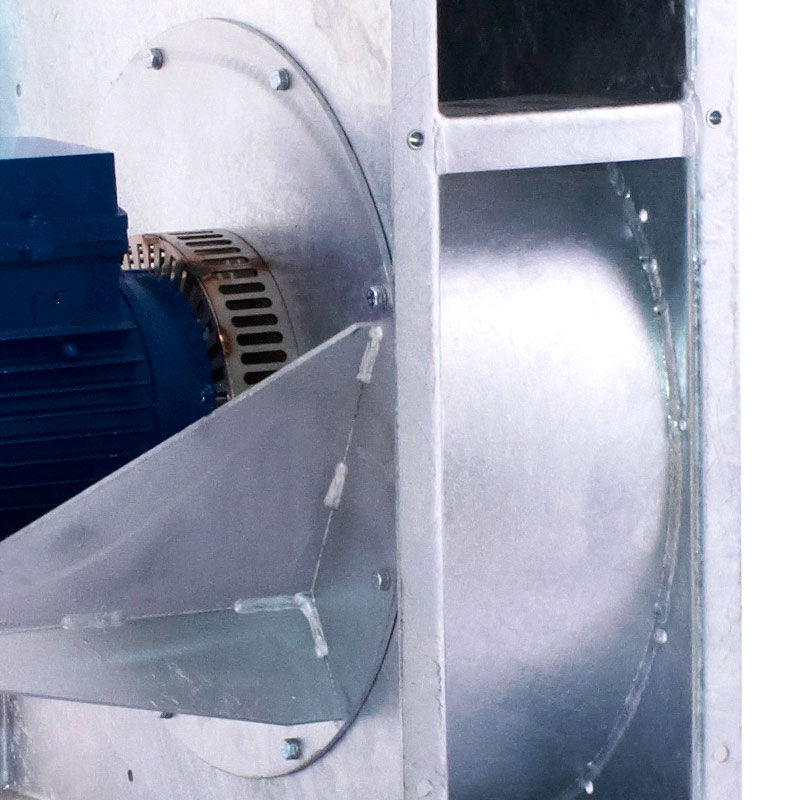

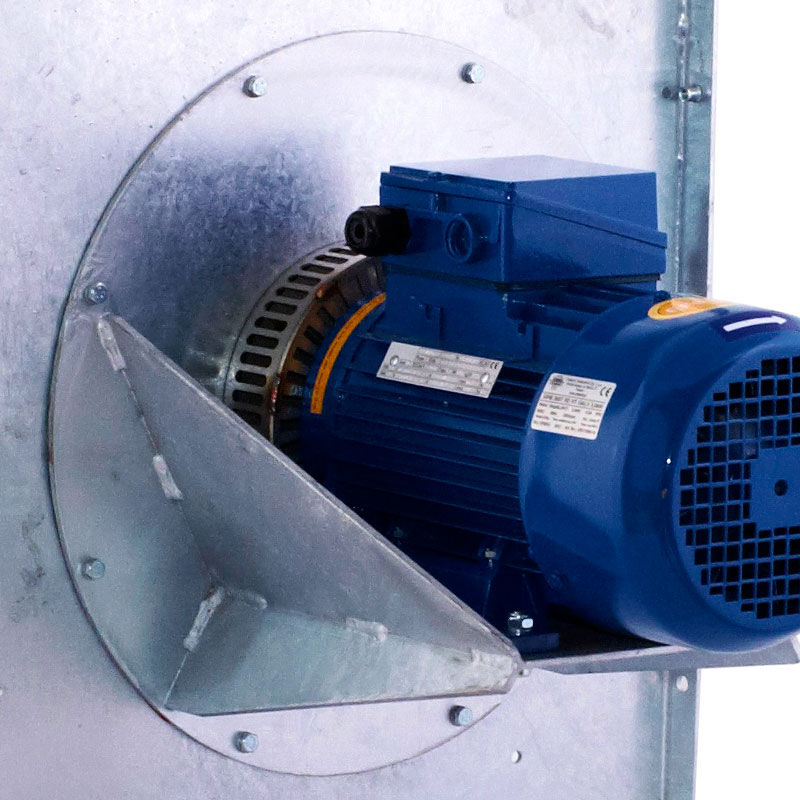

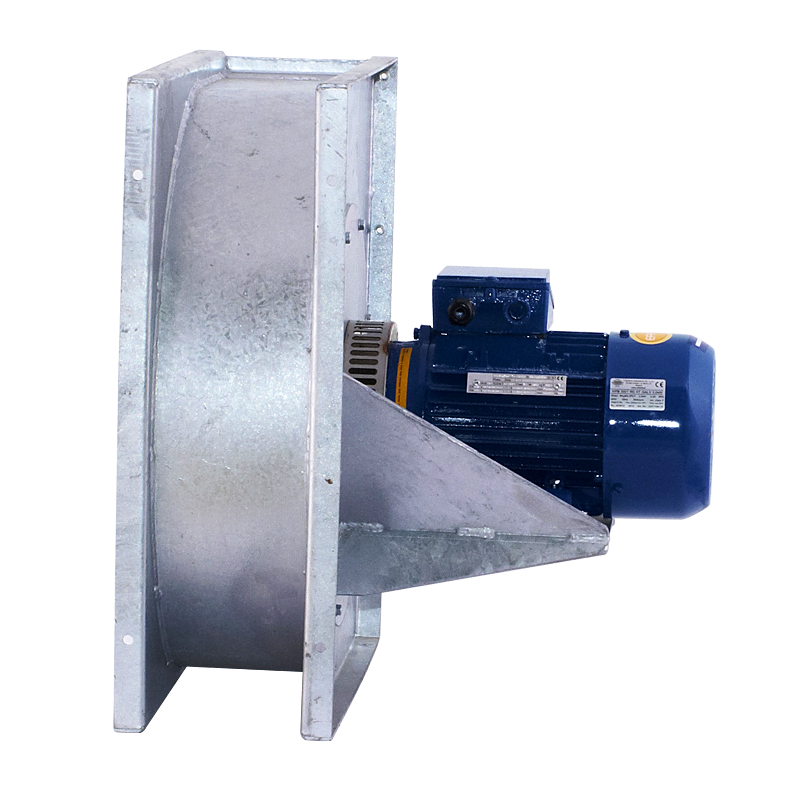

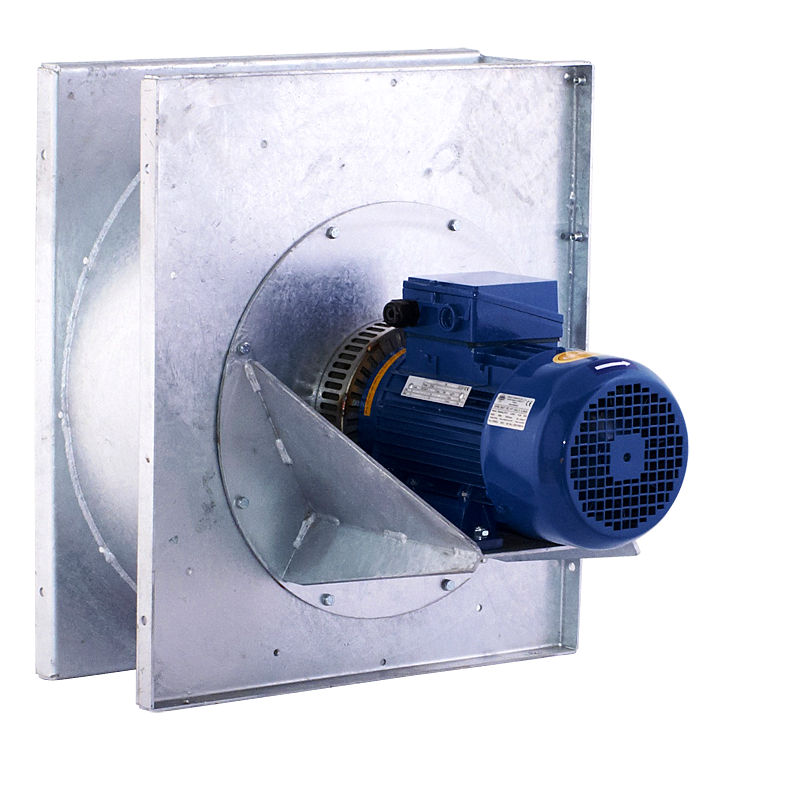

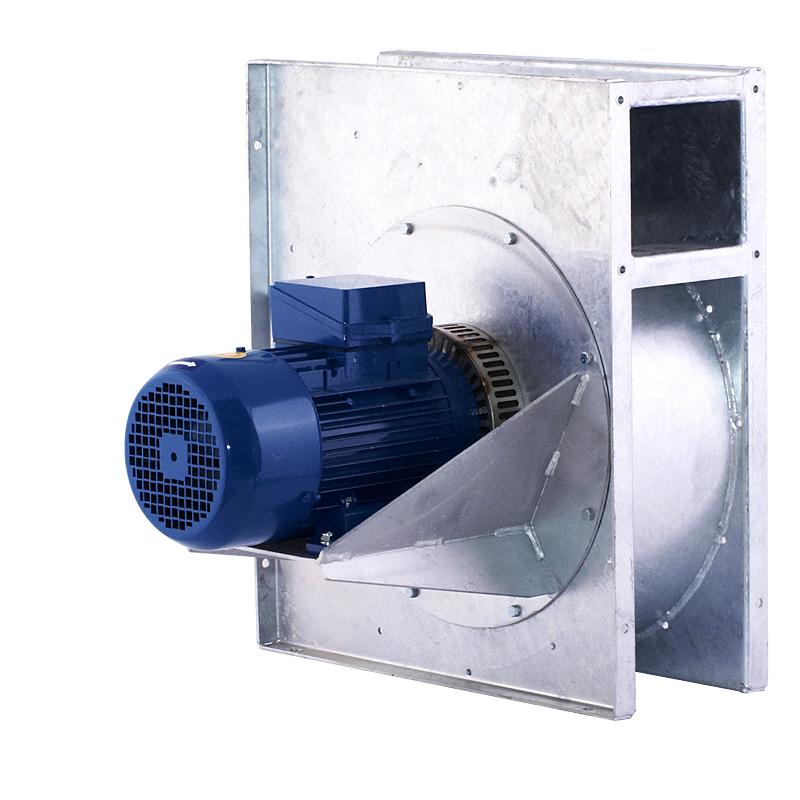

- cooling wing between housing and motor,
- maximum medium temperature 250oC,
- ambient temperature range from -20oC to +40oC,
- standard RD90 positions in models 100 and 130,
- standard LG270 positions in models 200 and 300.

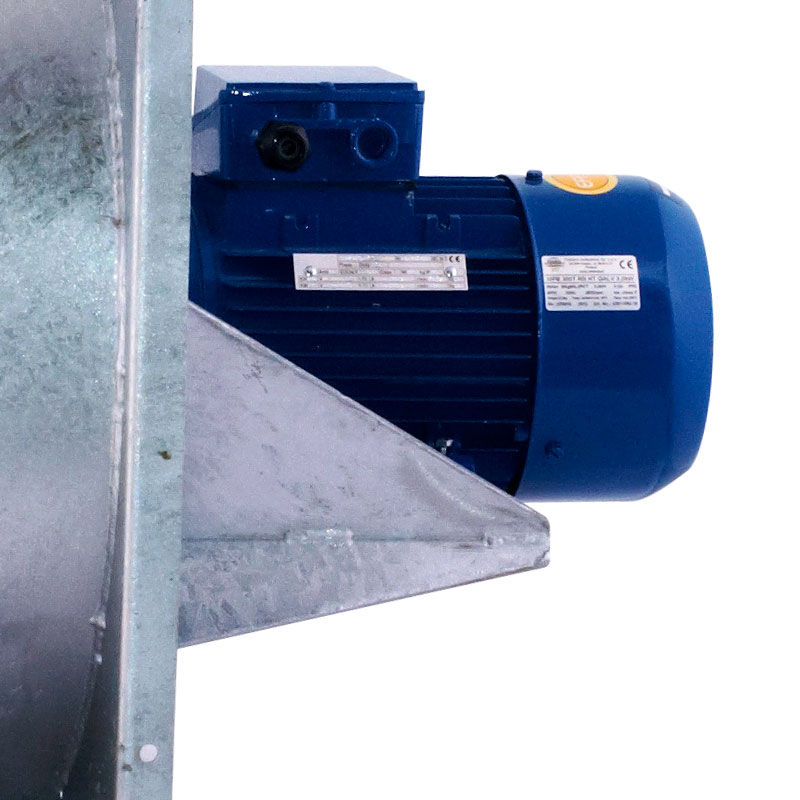

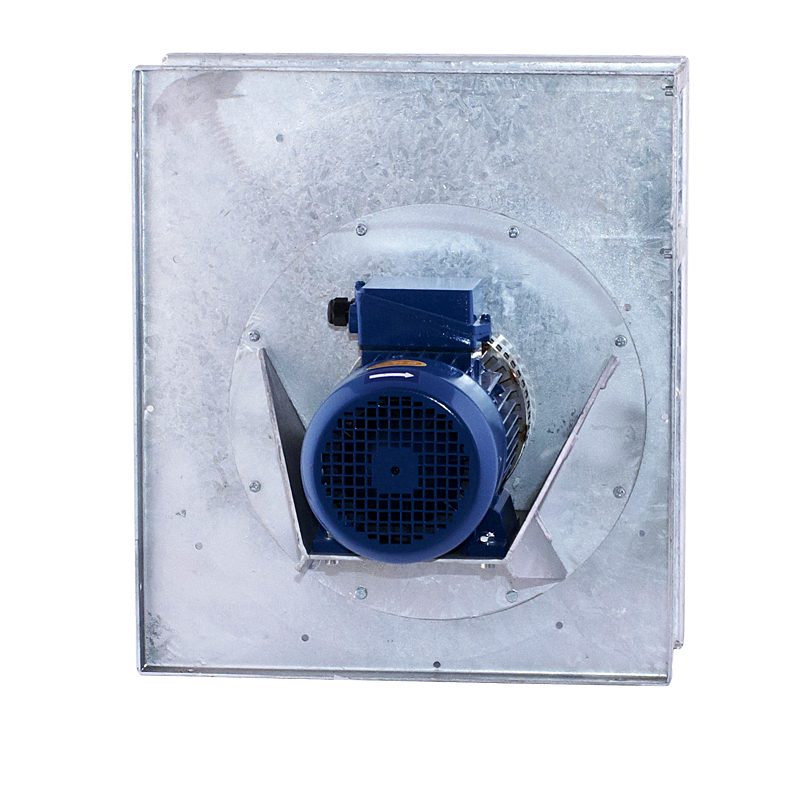

MOTOR
- asynchronous, three-phase, 230/400V 50Hz (power to 3kW),
- efficiency class IE3,
- degree of protection IP55,
- insulation class F,
- adapted for frequency converter.
SPECIAL EXECUTIONS
- different positions LG/RD,
- impeller, housing and support made of stainless steel 1.4301,
- impeller, housing and support made of acid-proof steel 1.4404,
- different motor voltage and frequency,
- different motor degree of protection,
- motor equipped with sensors or additional cooling,
- ambient temperature range below -20oC and above +40oC.
Arbeitseigenschaften
Größe
| Typ | A | B | C | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 413 | 463 | 432 | 192 | 201 | 110 | 100 | 137 | 110 |
| GMT-HT-130-110T | 413 | 463 | 450 | 192 | 201 | 110 | 100 | 137 | 110 |
| Typ | K | L | S | T | X | A1 | B1 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 160 | 145 | 392 | 80 | 4 | 363 | 423 |
| GMT-HT-130-110T | 160 | 145 | 392 | 80 | 4 | 363 | 423 |
| Typ | E1 | F1 | N1 | N2 | N3 | N4 | N5 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 50 | 50 | 12 | 20 | 80 | 142 | 149 |
| GMT-HT-130-110T | 50 | 50 | 12 | 20 | 80 | 142 | 149 |
| Typ | N6 | X1 | X2 | ØD | ØO | ØO1 | ØO2 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-100-075T | 162 | 2 | 4 | 125 | M6 | 9 | 9 |
| GMT-HT-130-110T | 162 | 2 | 4 | 125 | M6 | 9 | 9 |
| Typ | A | B | C | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 506 | 574 | 481 | 223 | 323 | 110 | 140 | 140 | 150 |
| GMT-HT-300-300T | 506 | 574 | 517 | 223 | 323 | 140 | 140 | 170 | 150 |
| Typ | K | L | S | T | X | A1 | B1 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 166 | 180 | 94 | 83 | 4 | 457 | 491 |
| GMT-HT-300-300T | 196 | 190 | 102 | 98 | 4 | 457 | 491 |
| Typ | E1 | F1 | N1 | N2 | N3 | N4 | N5 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 49 | 83 | 12 | 28 | 83 | 138 | 154 |
| GMT-HT-300-300T | 49 | 83 | 12 | 28 | 98 | 168 | 184 |
| Typ | N6 | X1 | X2 | ØD | ØO | ØO1 | ØO2 |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| GMT-HT-200-150T | 166 | 2 | 4 | 160 | M6 | 9 | 9 |
| GMT-HT-300-300T | 196 | 2 | 4 | 200 | M6 | 9 | 9 |
