Dachventilator
Serienmäßige Dachventilatoren für den Extraktionsbetrieb. Die Modelle 500 und 800 werden aus hochfestem Spritzgusskunststoff hergestellt, die Modelle 1300 und 2000 aus hochwertigem Stahlblech.
Construction
Range of roof mounted mixed flow fans supplied as standard for extract operation. The models 500 and 800 are manufactured from high strength injection moulded plastic, and models 1300 and 2000 from high grade pressed sheet steel. The bases are manufactured from sheet steel. The cowls are manufactured from pressed sheet steel (500 and 800 models) or spun aluminium (1200 and 2000).

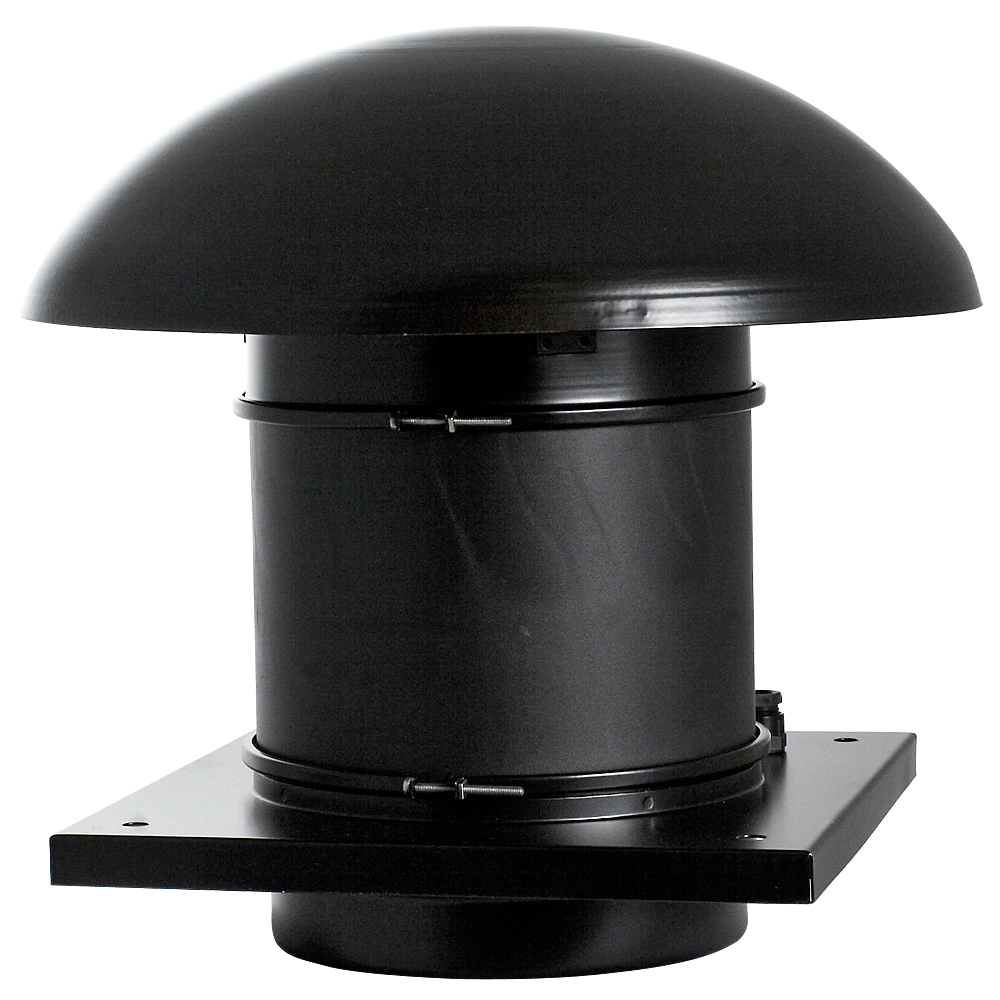

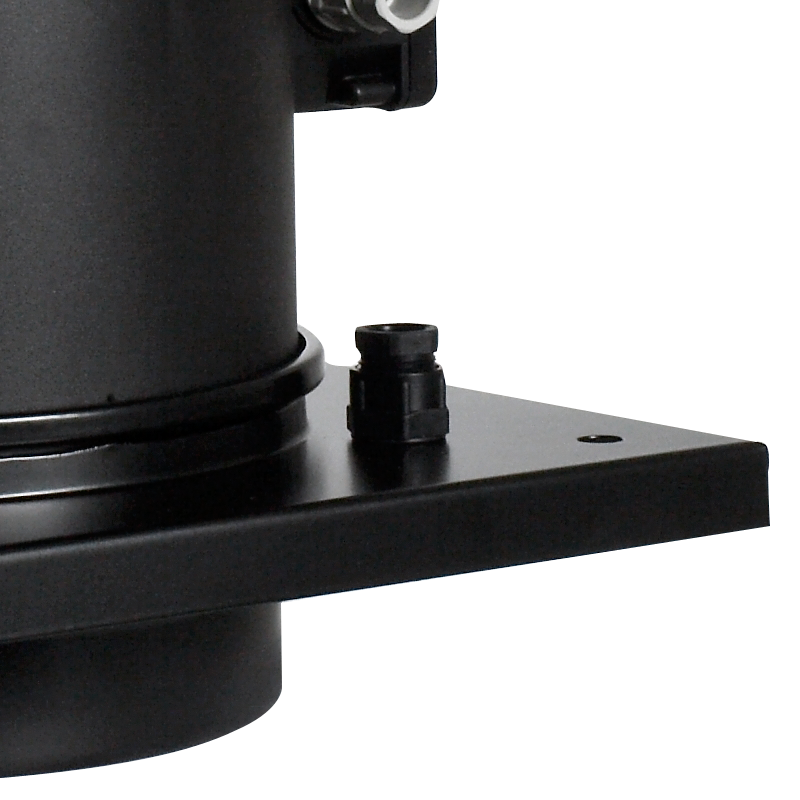

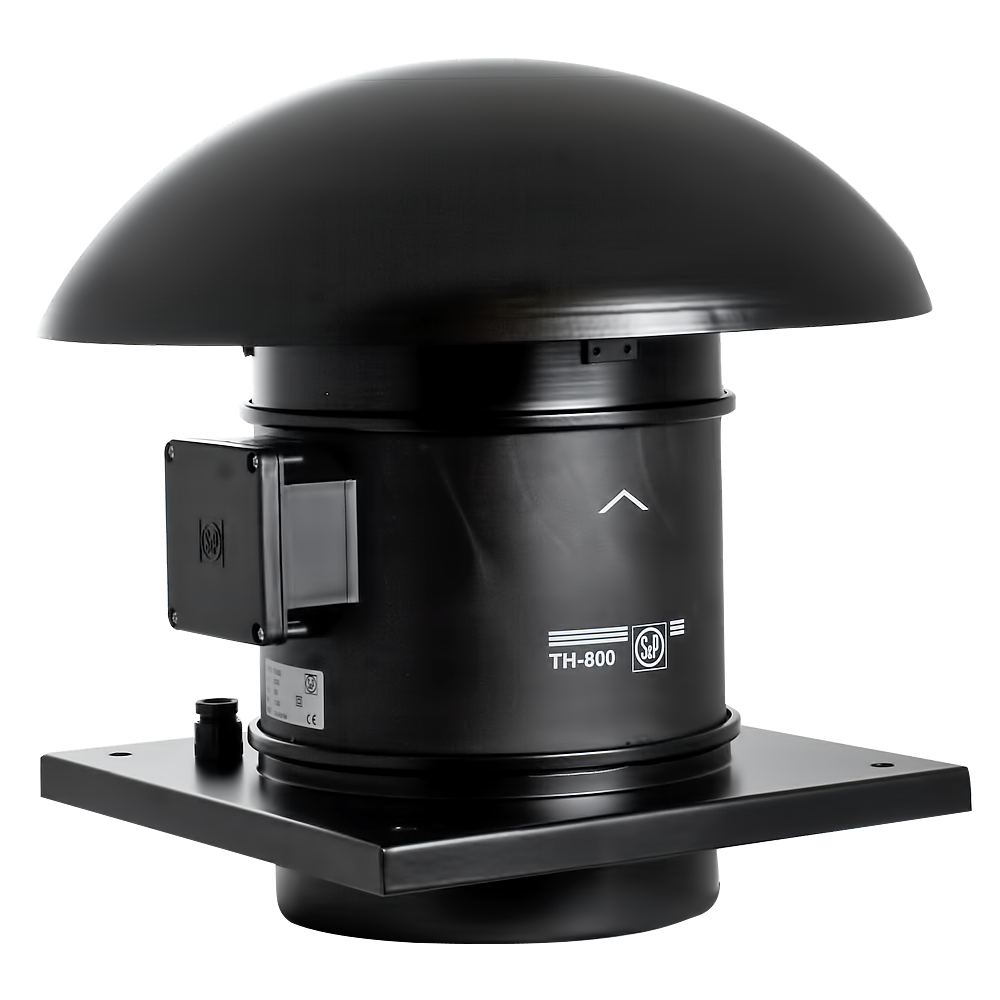

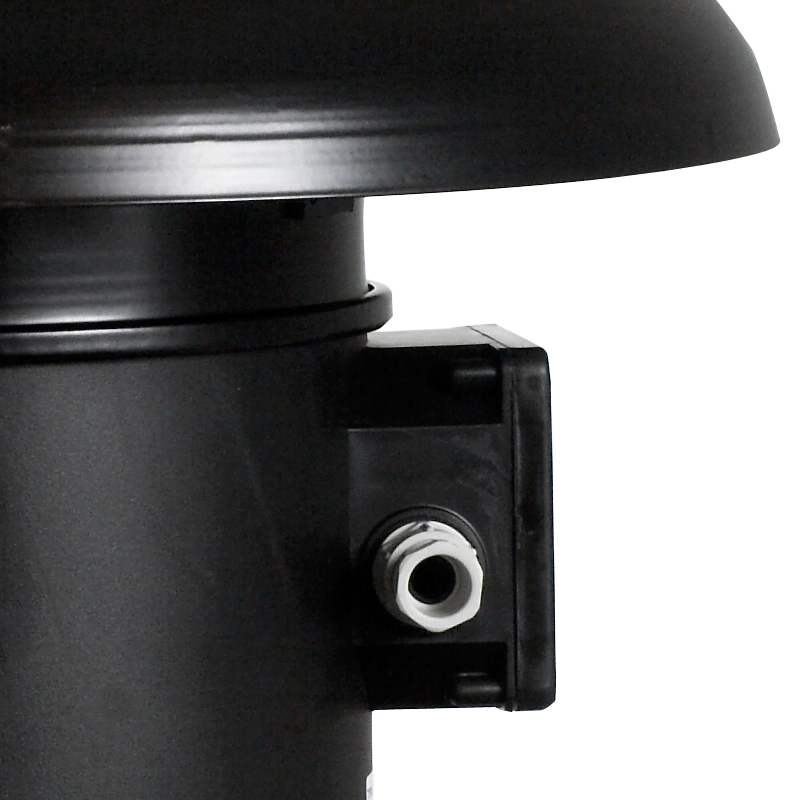

All models incorporate a bird guard and base cable gland entry point as standard. All metallic parts are protected with a black epoxy-polyester weatherproof paint coating. The motor and impeller casing can be easily removed by 2 fixing clamps.
Motor

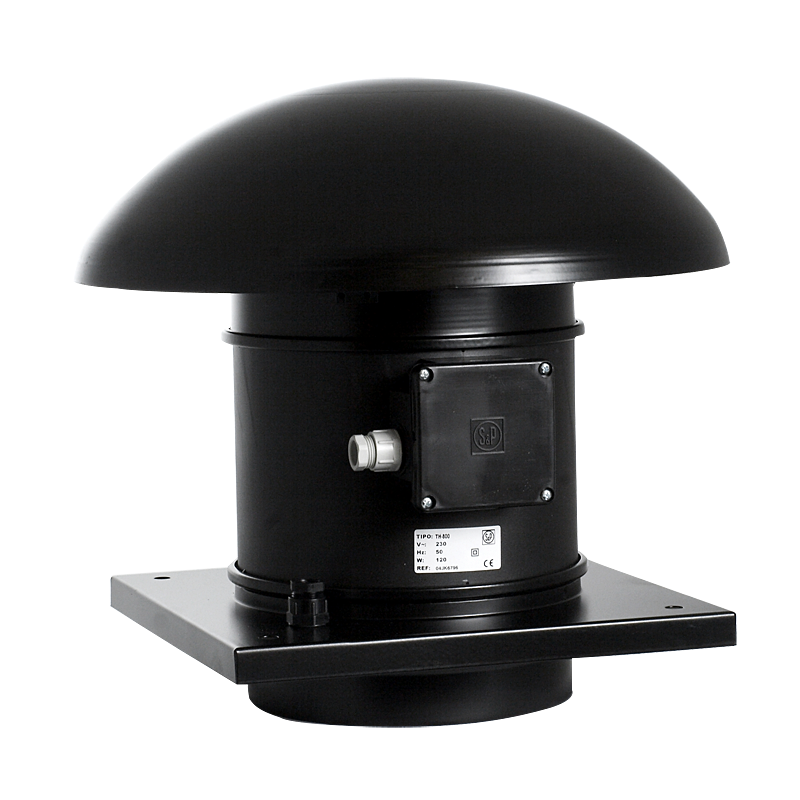

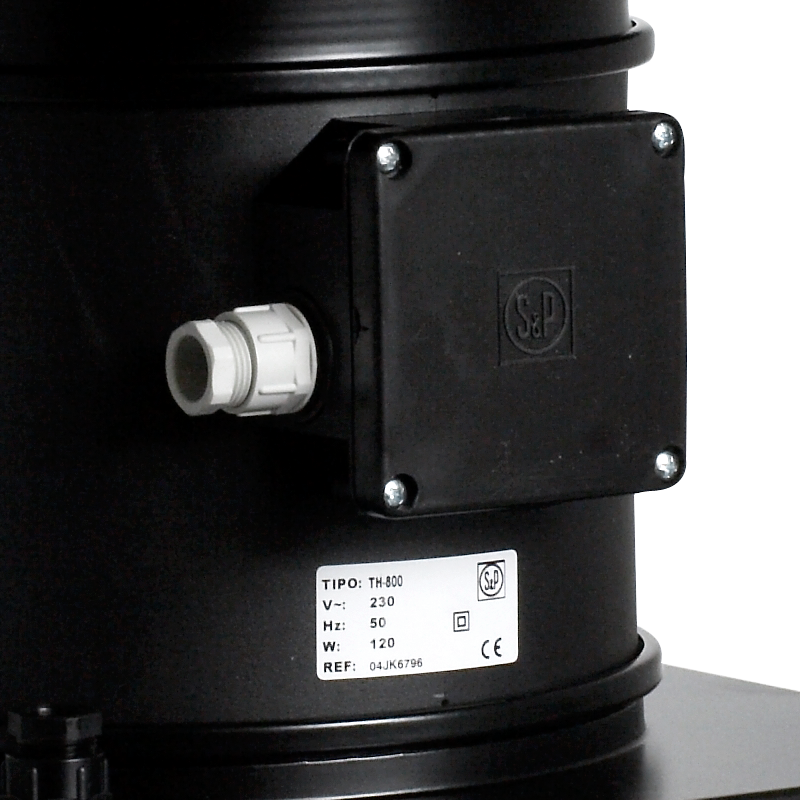

All motors are IP44, Class F, equipped with thermal protection and ball bearings greased for life.
Electrical supply:

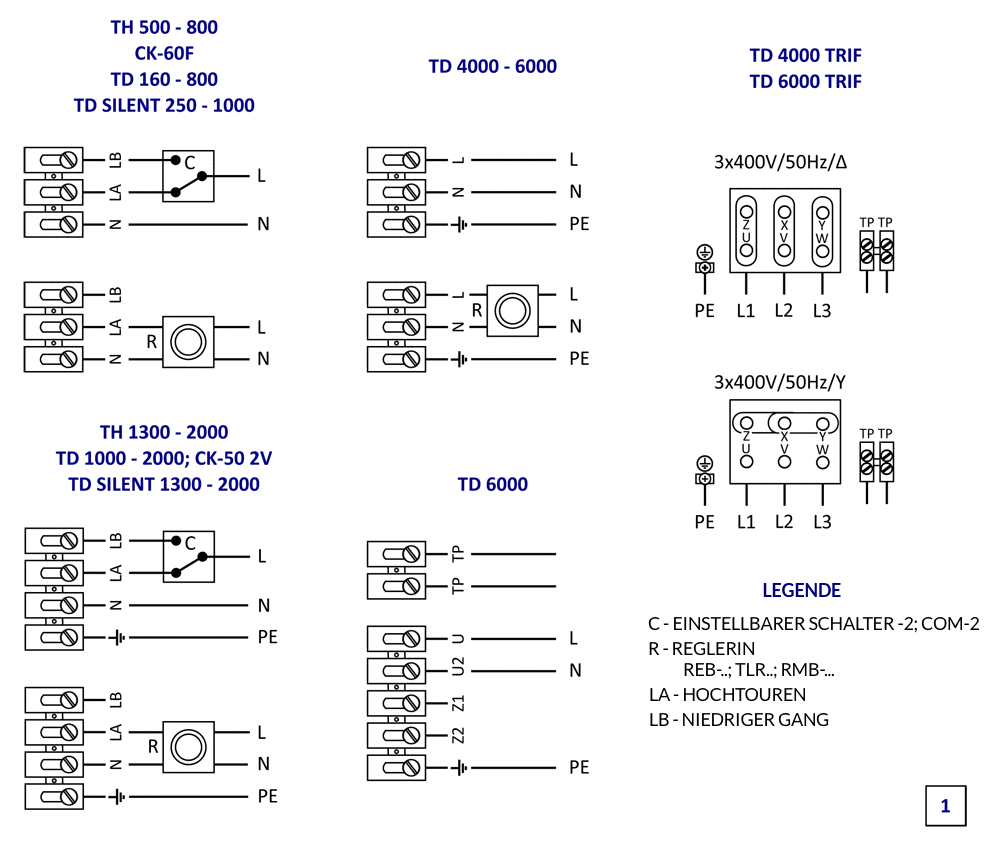

- Single phase 230V-50Hz (Capacitor located inside the wiring terminal box).
- All motor have two speed connections also suitable for voltage speed control using electronic or auto-transformer controllers.
Additional Information
Supplied, in the standard version, as extractors. For the TH-500, 800 and 800N models, the motor and impeller casing can be removed and turned through 180º to provide supply air ventilation.
Arbeitseigenschaften
Größe
| Typ | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| TH-500/150 3V out | 400 | 349 | 300 | 150 | 245 | 10 | 20 | 274 | 33 |
| TH-500/150 3V in | 400 | 349 | 300 | 150 | 245 | 10 | 20 | 274 | 33 |
| TH-500/160 3V out | 400 | 339 | 300 | 150 | 245 | 10 | 20 | 274 | 33 |
| TH-500/160 3V in | 400 | 339 | 300 | 150 | 245 | 10 | 20 | 274 | 33 |
| TH-800/200N 3V out | 400 | 371 | 300 | 198 | 245 | 10 | 20 | 306 | 36 |
| TH-800/200N 3V in | 400 | 371 | 300 | 198 | 245 | 10 | 20 | 306 | 36 |
| TH-800/200 3V out | 400 | 371 | 300 | 198 | 245 | 10 | 20 | 306 | 36 |
| TH-800/200 3V in | 400 | 371 | 300 | 198 | 245 | 10 | 20 | 306 | 36 |
