DH - Rohrheizer

DH

Rohrheizer

Die DH-Lufterhitzer werden in denjenigen mechanischen Lüftungssystemen eingesetzt, in den die Erhöhung der Temperatur in der Wintersaison oder die Erhaltung einer konstanten Raumtemperatur nötig ist.
Fragen Sie nach einem Produkt

APPLICATION

Heaters DH are used in mechanical ventilation systems where there is a need to raise the temperature during winter or keep constant temperature in the room. It is possible to use heaters in technological processes that require the supply of constant temperature air.

CONSTRUCTION

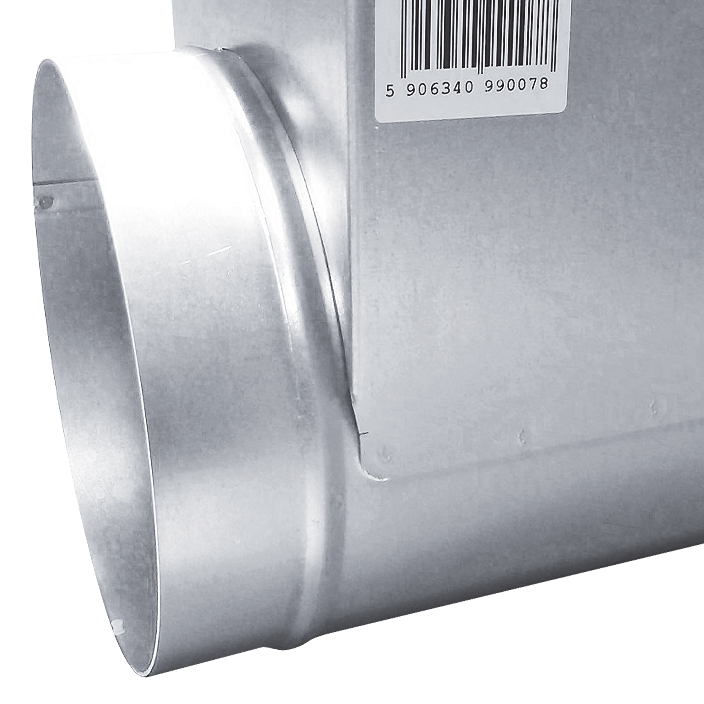

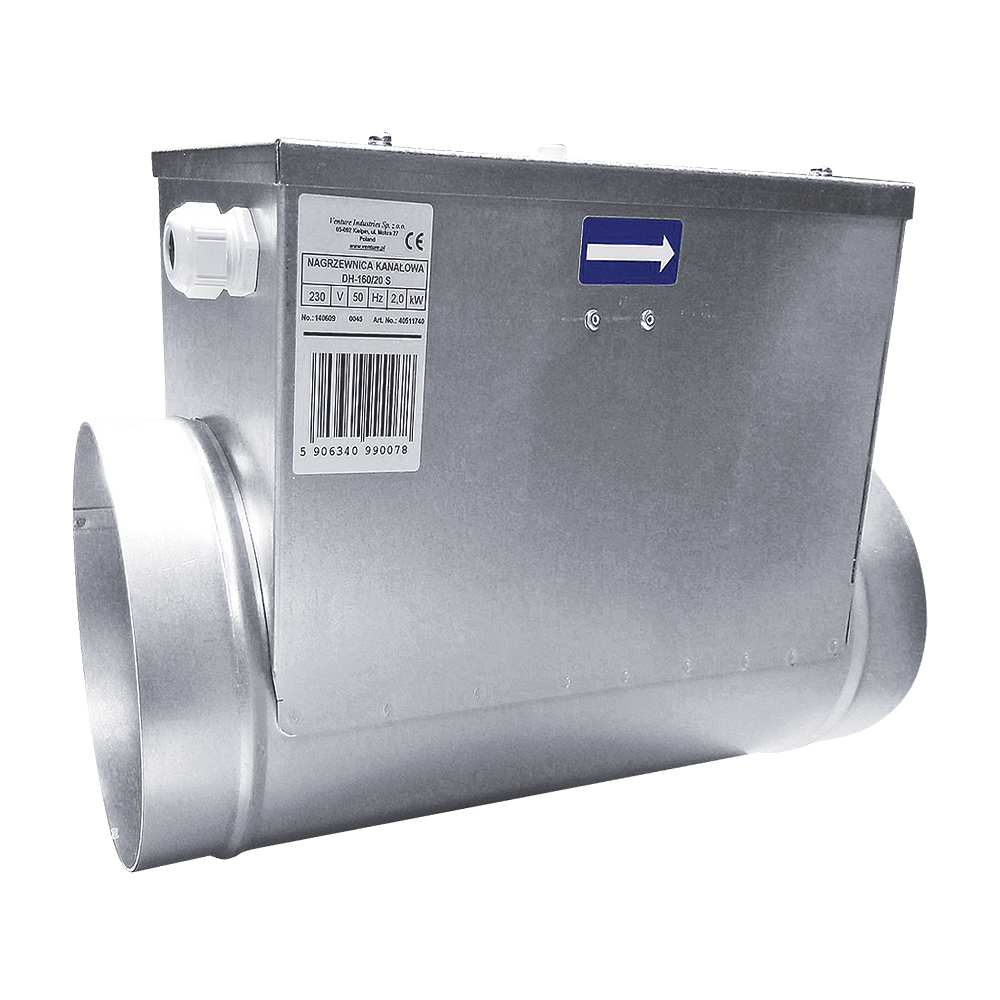

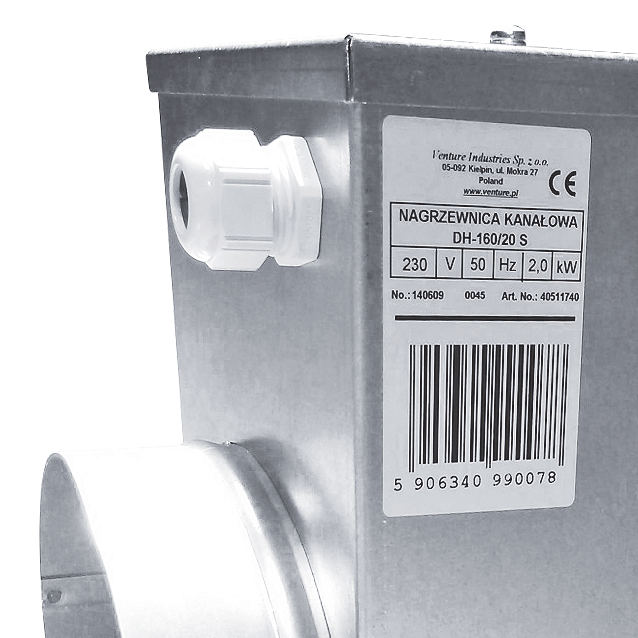

Electric duct heaters designed for direct mounting on circular ducts with standard diameters (100-400 mm). The housing of the heater is made of galvanized sheet steel, and the heating elements are made of stainless steel.

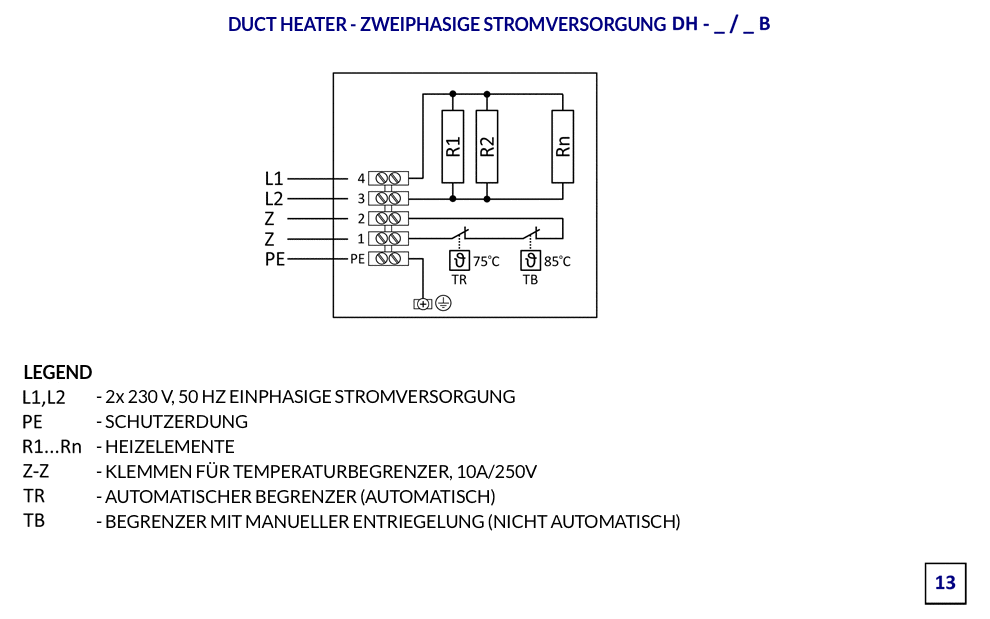

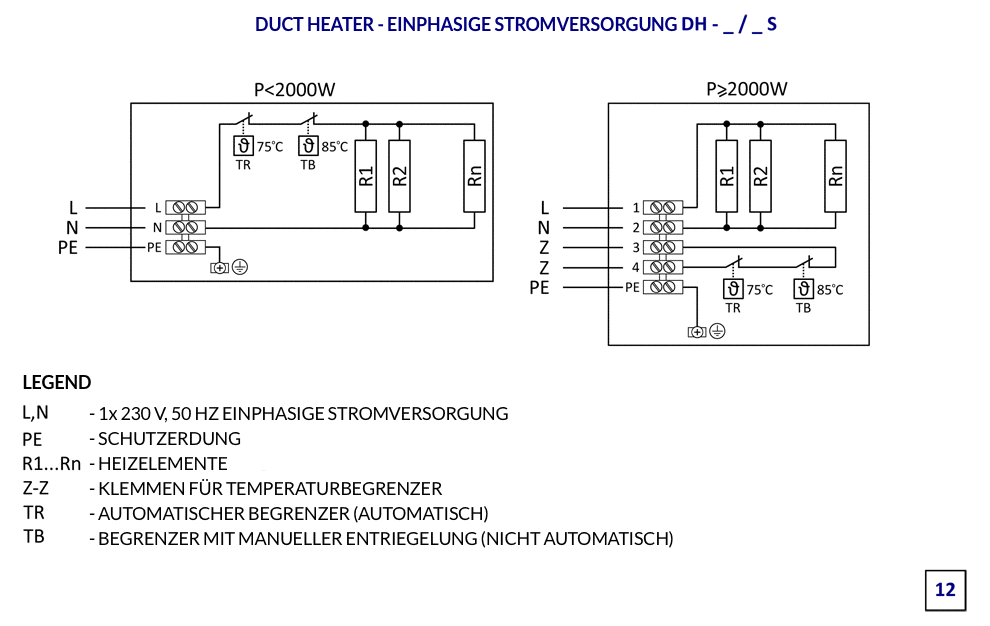

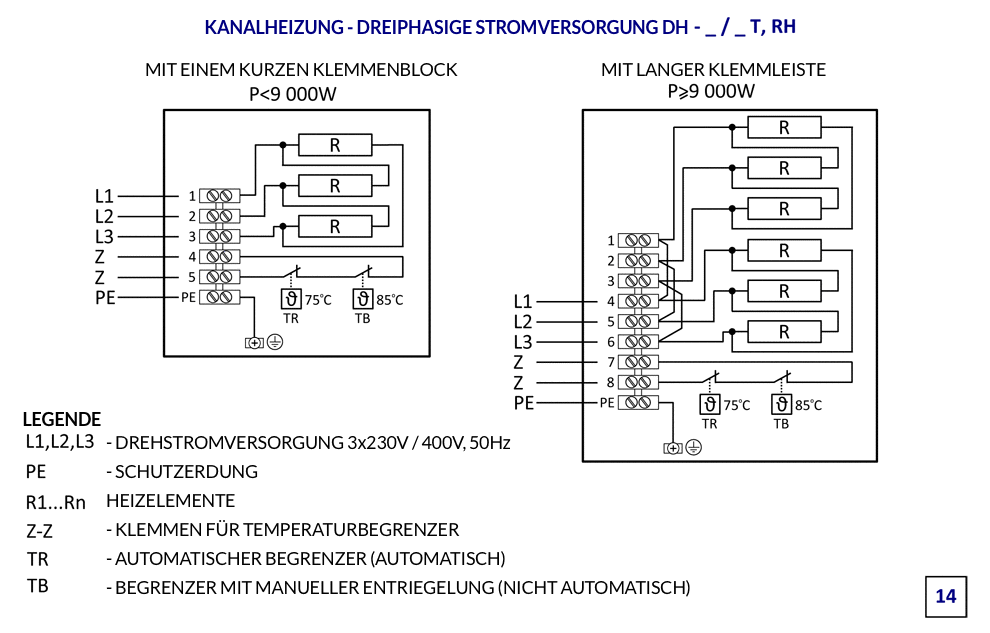

The heaters are fitted with a standard double overheat protection system: automatic element (temp. +75oC), and manual unlock (temp. +85oC). Duct heaters should be selected so that the outlet air temperature does not exceed +40oC. The air flow rate of the heaters must not be less than 1.5 m/s.

Technischer Support

Wähle einen Fan www.fanselectoronline.com

m3/h
Pa

Größe

Typ A B C D H
  mm mm mm mm mm
DH-100/03 S 380 280 98 100 105
DH-100/06 S 380 280 98 100 105
DH-100/09 S 380 280 98 100 105
DH-100/12 S 380 280 98 100 105
DH-125/03 S 380 280 105 125 105
DH-125/06 S 380 280 105 125 105
DH-125/09 S 380 280 105 125 105
DH-125/12 S 380 280 105 125 105
DH-160/05 S 380 280 135 160 105
DH-160/10 S 380 280 135 160 105
DH-160/15 S 380 280 135 160 105
DH-160/20 S 380 280 135 160 105
DH-200/05 S 400 300 165 200 105
DH-200/10 S 400 300 165 200 105
DH-200/15 S 400 300 165 200 105
DH-200/20 S 400 300 165 200 105
DH-200/25 S 400 300 165 200 105
DH-200/30 T 400 300 165 200 105
DH-200/30 B 400 300 165 200 105
DH-200/45 T 400 300 165 200 105
DH-200/50 B 400 300 165 200 105
DH-200/60 T 400 300 165 200 105
DH-200/60 B 400 300 165 200 105
DH-250/05 S 400 300 195 250 75
DH-250/10 S 400 300 195 250 75
DH-250/15 S 400 300 195 250 75
DH-250/25 S 400 300 195 250 75
DH-250/30 S 400 300 195 250 75
DH-250/30 T 400 300 195 250 75
DH-250/30 B 400 300 195 250 75
DH-250/45 T 400 300 195 250 75
DH-250/50 B 400 300 195 250 75
DH-250/60 T 400 300 195 250 75
DH-250/60 B 400 300 195 250 75
DH-250/90 T 400 300 195 250 75
DH-315/10 S 400 300 230 315 75
DH-315/15 S 400 300 230 315 75
DH-315/20 S 400 300 230 315 75
DH-315/25 S 400 300 230 315 75
DH-315/30 S 400 300 230 315 75
DH-315/30 T 400 300 230 315 75
DH-315/30 B 400 300 230 315 75
DH-315/45 T 400 300 230 315 75
DH-315/50 B 400 300 230 315 75
DH-315/60 T 400 300 230 315 75
DH-315/60 B 400 300 230 315 75
DH-315/90 T 400 300 230 315 75
DH-315/120 T 400 300 230 315 75
DH-355/30 S 440 340 230 355 75
DH-355/30 B 440 340 230 355 75
DH-355/60 B 440 340 230 355 75
DH-355/60 T 440 340 230 355 75
DH-355/90 T 440 340 230 355 75
DH-355/120 T 440 340 230 355 75
DH-355/150 T 440 340 230 355 75
DH-400/30 S 340 230 400 400 75
DH-400/30 B 440 340 230 400 75
DH-400/50 B 400 300 230 400 75
DH-400/60 B 400 300 230 400 75
DH-400/60 T 340 230 400 300 75
DH-400/90 T 340 230 400 400 75
DH-400/120 T 340 230 400 400 75
DH-400/150 T 340 230 400 400 75
DH-400/180 T 340 230 400 400 75
Typ A B H Średnica kanału
  mm mm mm mm
DH-250/20 S 400 253 347 250
DH-355/50 B 440 358 451 355
