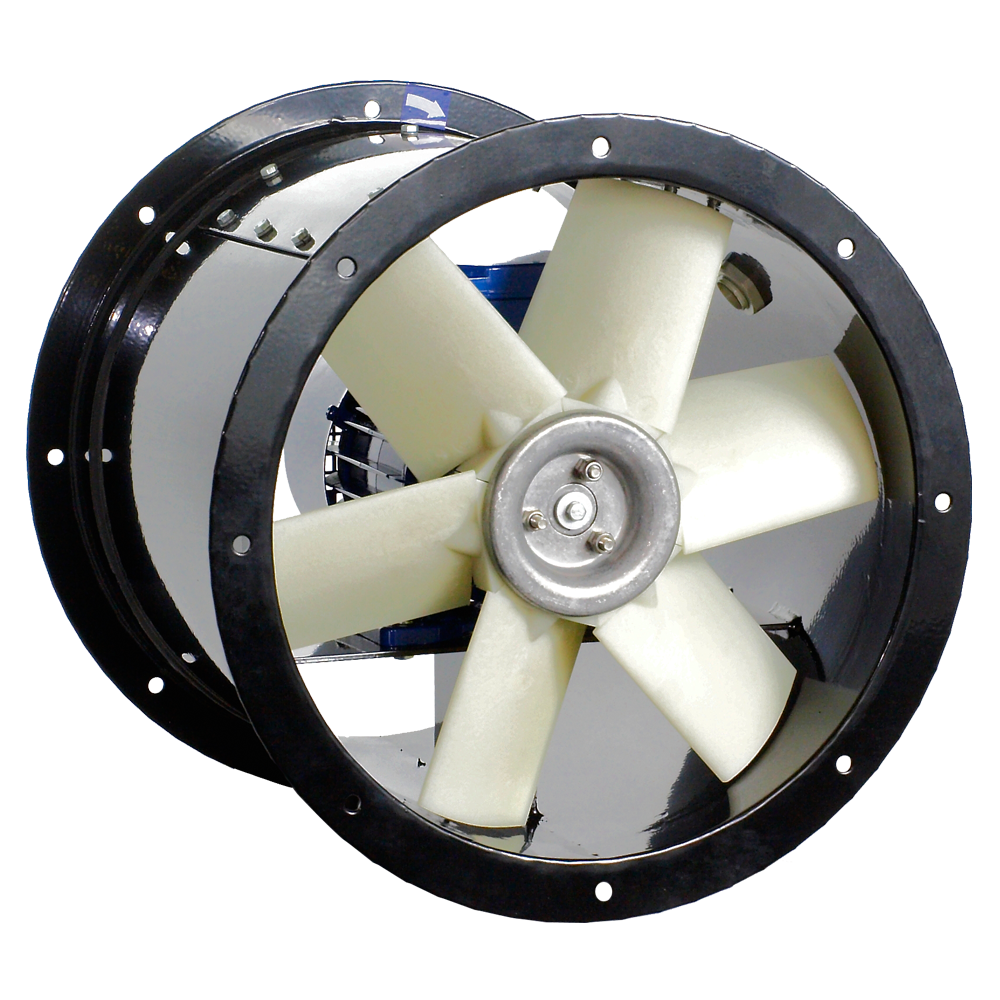

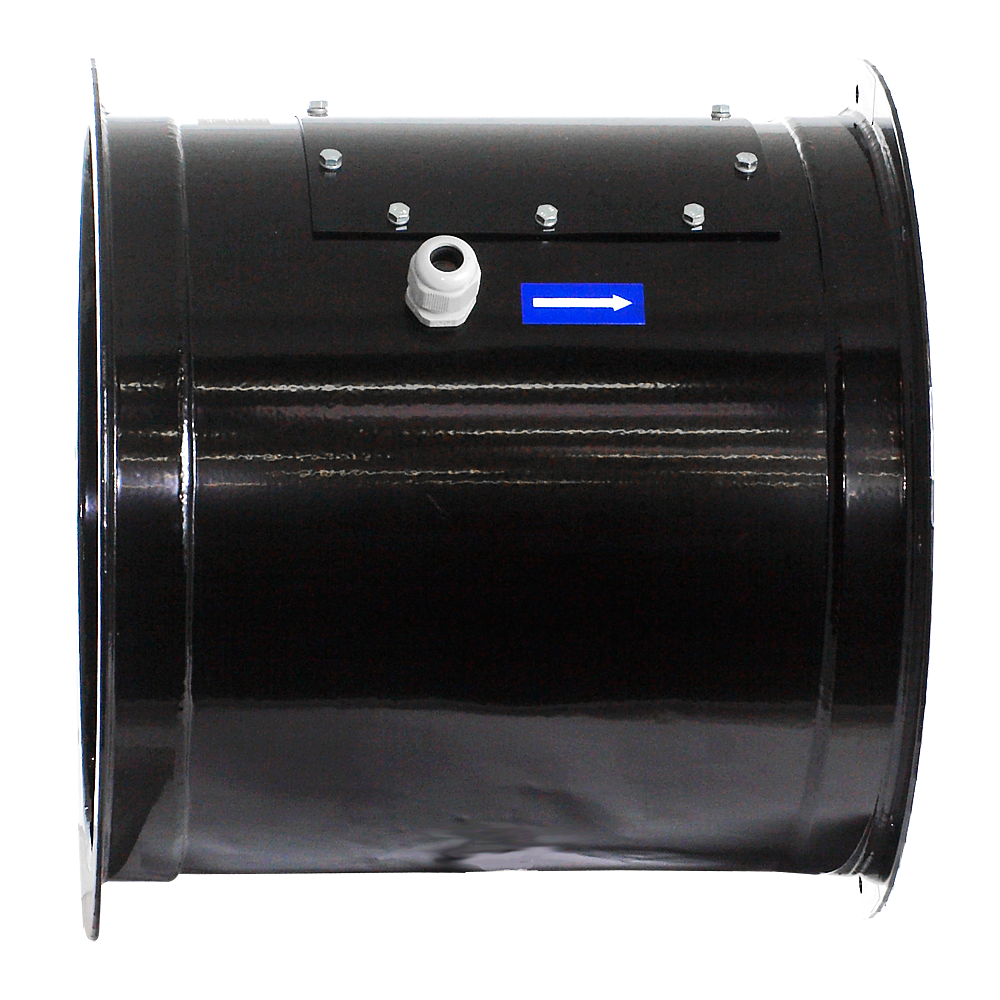

ARC Axialventilatoren Rohrausführung




Anwendung

Reversionslüfter ARC sind für den Einsatz als Ab- und Zulüfter bestimmt. Diese Lüfterserie kommt zur Anwendung bei den Lüftungsanlagen wo der Lüfter an die Kanäle sowohl an seiner Eintrittsseite als auch an der Austrittsseite angeschlossen ist. Dank ihres robusten und kompakten Aufbau sowie den möglichen Spezialausführungen sind sie für umfangreichen Einsatz in Lüftungsanlagen geeignet, wie z.B. allgemeine Lüftung von Geschäftsräumen und Industriehallen Lüftung von Lagern und Lagerräumen Lüftung von Garagen und Gebäuden des öffentlichen Gebrauchs u.a.

Bauart

Axiallüfter sind für den Einbau in den Luftkanälen bestimmt. Die Gehäuse werden aus Stahlblech geschweisst und schwarz (RAL9005) lackiert. Die Laufräder werden standardmäßig aus glasfaserverstärktem Poliamid (Größen von 250 bis 710) und Aluminium (Größen 1250 u. 1500) gefertigt; bei den Größen 800 u. 900 aus Polyamid oder Aluminium , abhängig von der Motorleistung, (4-800 über 3 kW - Aluminium, 4-900 über 4 kW - Aluminium, 6-800 über 1,5 kW - Aluminium, 6-900 über 2,2 kW - Aluminium); die Laufradnaben aus Aluminium; die Laufräder werden, gemäß ISI 1940-1, dynamisch ausgewuchtet. Die Betriebstemperatur beträgt -15°C bis +40°C. Anpassungen oder Aufbauänderungen gemäß den Richtlinien vom Auftraggeber sind möglich. Sonderausführungen bedürfen einer Absprache mit Venture Industries Sp. z. o.o.

Elektromotor

Asynchron, Drehstrommotor 220-240/480-420V, 50Hz 400V, 50 Hz. Die Motoren sind gemäß dem Standard IEC 60072 und IEC 60034 hergestellt und besitzen das CE-Zeichen. Isolierklasse F, Schutzgrad IP55. Die Motoren für andere Spannungen, Frequenzen, mit erhöhtem Schutzgrad, für Spannungsteuerung oder für Steuerung mittels Frequenzumrichter geeignet, mit Fremdkühlung, mit Bimetall- oder PTC-Fühlern können auf Wunsch geliefert werden


ModellVersorgung
[V]
Drehzahl
[U/min]
P
[W]
I
[A]
Qmax
[m3/h]
Δpmax
[Pa]
Temp. [°C]Masse [kg][db(A)]
ARC/2-250-012T KO40028001200.351500150-15+4063
ARC/2-250-012T DO40028001200.351500150-15+4063
ARC/2-250A-018T KO40027601800.551750150-15+4063
ARC/2-250A-018T DO40027601800.551750150-15+4063
ARC/2-250B-018T KO40027601800.552000143-15+4064
ARC/2-250B-018T DO40027601800.552000143-15+4064
ARC/2-250C-018T KO40027601800.552250130-15+4064
ARC/2-250C-018T DO40027601800.552250130-15+4064
ARC/2-250-025T KO40027602500.652500114-15+4065
ARC/2-250-025T DO40027602500.652500114-15+4065
ARC/4-250A-012T KO40013801200.474036-15+4049
ARC/4-250A-012T DO40013801200.474036-15+4049
ARC/4-250B-012T KO40013801200.487036-15+4049
ARC/4-250B-012T DO40013801200.487036-15+4049
ARC/4-250C-012T KO40013801200.498034-15+4050
ARC/4-250C-012T DO40013801200.498034-15+4050
ARC/4-250D-012T KO40013801200.4110031-15+4050
ARC/4-250D-012T DO40013801200.4110031-15+4050
ARC/4-250E-012T KO40013801200.4120027-15+4051
ARC/4-250E-012T DO40013801200.4120027-15+4051
ARC/2-315-025T KO40027602500.652800207-15+4070
ARC/2-315-025T DO40027602500.652800207-15+4070
ARC/2-315A-037T KO400280037013300204-15+4070
ARC/2-315A-037T DO400280037013300204-15+4070
ARC/2-315B-037T KO400280037013700209-15+4071
ARC/2-315B-037T DO400280037013700209-15+4071
ARC/2-315A-055T KO40028005501.354150185-15+4071
ARC/2-315A-055T DO40028005501.354150185-15+4071
ARC/2-315B-055T KO40028005501.354500170-15+4072
ARC/2-315B-055T DO40028005501.354500170-15+4072
ARC/4-315A-012T KO40013801200.4135050-15+4055
ARC/4-315A-012T DO40013801200.4135050-15+4055
ARC/4-315B-012T KO40013801200.4160049-15+4055
ARC/4-315B-012T DO40013801200.4160049-15+4055
ARC/4-315-018T KO40013801800.65180050-15+4056
ARC/4-315-018T DO40013801800.65180050-15+4056
ARC/4-315A-025T KO40013802500.85200046-15+4056
ARC/4-315A-025T DO40013802500.85200046-15+4056
ARC/4-315B-025T KO40013802500.85220042-15+4057
ARC/4-315B-025T DO40013802500.85220042-15+4057
ARC/2-355A-037T KO400280037013250235-15+4070
ARC/2-355A-037T DO400280037013250235-15+4070
ARC/2-355B-037T KO400280037013950249-15+4070
ARC/2-355B-037T DO400280037013950249-15+4070
ARC/2-355-055T KO40028005501.354730250-15+4071
ARC/2-355-055T DO40028005501.354730250-15+4071
ARC/2-355A-075T KO IE240028007501.95150250-15+4071
ARC/2-355A-075T DO IE240028007501.95150250-15+4071
ARC/2-355B-075T KO IE240028007501.95850222-15+4072
ARC/2-355B-075T DO IE240028007501.95850222-15+4072
ARC/4-355A-012T KO40013801200.4160057-15+4056
ARC/4-355A-012T DO40013801200.4160057-15+4056
ARC/4-355B-012T KO40013801200.4190060-15+4056
ARC/4-355B-012T DO40013801200.4190060-15+4056
ARC/4-355-018T KO40013801800.65230060-15+4057
ARC/4-355-018T DO40013801800.65230060-15+4057
ARC/4-355-025T KO40013802500.85250060-15+4057
ARC/4-355-025T DO40013802500.85250060-15+4057
ARC/4-355-037T KO40013703701.25285054-15+4058
ARC/4-355-037T DO40013703701.25285054-15+4058
ARC/2-400-055T KO40028005501.354750300-15+4062
ARC/2-400-055T DO40028005501.354750300-15+4062
ARC/2-400-075T KO40028007501.95750340-15+4063
ARC/2-400-075T DO40028007501.95750340-15+4063
ARC/2-400-110T KO400278011002.56700340-15+4064
ARC/2-400-110T DO400278011002.56700340-15+4064
ARC/2-400-150T KO400283015003.27750360-15+4065
ARC/2-400-150T DO400283015003.27750360-15+4065
ARC/4-400A-018T KO40013801800.65225070-15+4049
ARC/4-400A-018T DO40013801800.65225070-15+4049
ARC/4-400B-018T KO40013801800.65275079-15+4049
ARC/4-400B-018T DO40013801800.65275079-15+4049
ARC/4-400C-018T KO40013801800.65320079-15+4050
ARC/4-400C-018T DO40013801800.65320079-15+4050
ARC/4-400-025T KO40013802500.85370085-15+4050
ARC/4-400-025T DO40013802500.85370085-15+4050
ARC/4-400-037T KO40013703701.25415091-15+4051
ARC/4-400-037T DO40013703701.25415091-15+4051
ARC/2-450-110T KO400278011002.56400420-15+4071
ARC/2-450-110T DO400278011002.56400420-15+4071
ARC/2-450-150T KO400283515003.28150440-15+4072
ARC/2-450-150T DO400283515003.28150440-15+4072
ARC/2-450-220T KO400285022004.79650530-15+4072
ARC/2-450-220T DO400285022004.79650530-15+4072
ARC/2-450-300T KO400290030006.111300570-15+4073
ARC/2-450-300T DO400290030006.111300570-15+4073
ARC/4-450-018T KO40013801800.65310098-15+4058
ARC/4-450-018T DO40013801800.65310098-15+4058
ARC/4-450-025T KO40013802500.853900101-15+4058
ARC/4-450-025T DO40013802500.853900101-15+4058
ARC/4-450-037T KO40013703701.254650122-15+4059
ARC/4-450-037T DO40013703701.254650122-15+4059
ARC/4-450-055T KO40014005501.65450133-15+4059
ARC/4-450-055T DO40014005501.65450133-15+4059
ARC/4-450-075T KO40013907502.16000130-15+4060
ARC/4-450-075T DO40013907502.16000130-15+4060
ARC/2-500-150T KO400283515003.28450452-15+4074
ARC/2-500-150T DO400283515003.28450452-15+4074
ARC/2-500-220T KO400285022004.710800535-15+4075
ARC/2-500-220T DO400285022004.710800535-15+4075
ARC/2-500-300T KO400290030006.112800570-15+4076
ARC/2-500-300T DO400290030006.112800570-15+4076
ARC/4-500-018T KO40013801800.654200112-15+4059
ARC/4-500-018T DO40013801800.654200112-15+4059
ARC/4-500-025T KO40013802500.855400134-15+4060
ARC/4-500-025T DO40013802500.855400134-15+4060
ARC/4-500-037T KO40013703701.256400143-15+4061
ARC/4-500-037T DO40013703701.256400143-15+4061
ARC/4-500-055T KO40014005501.67550150-15+4062
ARC/4-500-055T DO40014005501.67550150-15+4062
ARC/4-500-075T KO40013907502.18500154-15+4063
ARC/4-500-075T DO40013907502.18500154-15+4063
ARC/4-560-037T KO40013703701.255490160-15+4064
ARC/4-560-037T DO40013703701.255490160-15+4064
ARC/4-560-055T KO40014005501.67050160-15+4064
ARC/4-560-055T DO40014005501.67050160-15+4064
ARC/4-560-075T KO40013907502.18600160-15+4064
ARC/4-560-075T DO40013907502.18600160-15+4065
ARC/4-560-110T KO400140011002.610200161-15+4065
ARC/4-560-110T DO400140011002.610200161-15+4065
ARC/4-560-150T KO400140015003.511600168-15+4065
ARC/4-560-150T DO400140015003.511600168-15+4065
ARC/6-560-018T KO4008901800.75355068-15+4055
ARC/6-560-018T DO4008901800.75355068-15+4055
ARC/6-560-025T KO4008802501460068-15+4055
ARC/6-560-025T DO4008802501460068-15+4055
ARC/6-560-037T KO4009003701.5566068-15+4056
ARC/6-560-037T DO4009003701.5566068-15+4056
ARC/6-560-055T KO4009005501.75665069-15+4056
ARC/6-560-055T DO4009005501.75665069-15+4056
ARC/6-560-075T KO4009157502.1760072-15+4056
ARC/6-560-075T DO4009157502.1760072-15+4056
ARC/4-630-037T KO40013703701.257050175-15+4068
ARC/4-630-037T DO40013703701.257050175-15+4068
ARC/4-630-055T KO40014005501.69550180-15+4068
ARC/4-630-055T DO40014005501.69550180-15+4068
ARC/4-630-075T KO40013907502.111500190-15+4068
ARC/4-630-075T DO40013907502.111500190-15+4068
ARC/4-630-110T KO400140011002.614000195-15+4069
ARC/4-630-110T DO400140011002.614000195-15+4069
ARC/4-630-150T KO400140015003.516000200-15+4069
ARC/4-630-150T DO400140015003.516000200-15+4069
ARC/6-630-018T KO4008901800.75460075-15+4062
ARC/6-630-018T DO4008901800.75460075-15+4062
ARC/6-630-025T KO4008802501625078-15+4062
ARC/6-630-025T DO4008802501625078-15+4062
ARC/6-630-037T KO4009003701.5750082-15+4063
ARC/6-630-037T DO4009003701.5750082-15+4063
ARC/6-630-055T KO4009005501.75915084-15+4063
ARC/6-630-055T DO4009005501.75915084-15+4063
ARC/6-630-075T KO4009157502.11045086-15+4063
ARC/6-630-075T DO4009157502.11045086-15+4063
ARC/4-710-055T KO40014005501.68900165-15+4068
ARC/4-710-055T DO40014005501.68900165-15+4068
ARC/4-710-075T KO40013907502.112600190-15+4068
ARC/4-710-075T DO40013907502.112600190-15+4068
ARC/4-710-110T KO400140011002.616100200-15+4068
ARC/4-710-110T DO400140011002.616100200-15+4068
ARC/4-710-150T KO400140015003.519400210-15+4069
ARC/4-710-150T DO400140015003.519400210-15+4069
ARC/4-710-220T KO400142522004.822200220-15+4069
ARC/4-710-220T DO400142522004.822200220-15+4069
ARC/6-710-025T KO4008802501585070-15+4062
ARC/6-710-025T DO4008802501585070-15+4062
ARC/6-710-037T KO4009003701.5825081-15+4062
ARC/6-710-037T DO4009003701.5825081-15+4062
ARC/6-710-055T KO4009005501.751050086-15+4063
ARC/6-710-055T DO4009005501.751050086-15+4063
ARC/6-710-075T KO4009157502.11270090-15+4063
ARC/6-710-075T DO4009157502.11270090-15+4063
ARC/6-710-110T KO40092011002.91450095-15+4063
ARC/6-710-110T DO40092011002.91450095-15+4063
ARC/4-800-075T KO40013907502.110800200-15+4068
ARC/4-800-075T DO40013907502.110800200-15+4068
ARC/4-800-110T KO400140011002.615300215-15+4068
ARC/4-800-110T DO400140011002.615300215-15+4068
ARC/4-800-150T KO400140015003.519700220-15+4068
ARC/4-800-150T DO400140015003.519700220-15+4068
ARC/4-800-220T KO400142522004.824600230-15+4069
ARC/4-800-220T DO400142522004.824600230-15+4069
ARC/4-800-300T KO400141530006.630000252-15+4069
ARC/4-800-300T DO400141530006.630000252-15+4069
ARC/4-800-400T KO400143540008.329500335-15+4072
ARC/4-800-400T DO400143540008.329500335-15+4072
ARC/4-800-550T KO400145055001131500353-15+4073
ARC/4-800-550T DO400145055001131500353-15+4073
ARC/4-800-750T KO IE34001450750014.636000370-15+4074
ARC/4-800-750T DO IE34001450750014.636000370-15+4074
ARC/6-800-037T KO4009003701.5705086-15+4062
ARC/6-800-037T DO4009003701.5705086-15+4062
ARC/6-800-055T KO4009005501.751000090-15+4062
ARC/6-800-055T DO4009005501.751000090-15+4062
ARC/6-800-075T KO4009157502.11290093-15+4063
ARC/6-800-075T DO4009157502.11290093-15+4063
ARC/6-800-110T KO40092011002.91610099-15+4063
ARC/6-800-110T DO40092011002.91610099-15+4063
ARC/6-800-150T KO40094515003.919650109-15+4063
ARC/6-800-150T DO40094515003.919650109-15+4063
ARC/4-900-110T KO400140011002.612500200-15+4070
ARC/4-900-110T DO400140011002.612500200-15+4070
ARC/4-900-150T KO400140015003.519400240-15+4070
ARC/4-900-150T DO400140015003.519400240-15+4070
ARC/4-900-220T KO400142522004.826200260-15+4070
ARC/4-900-220T DO400142522004.826200260-15+4070
ARC/4-900-300T KO400141530006.632900265-15+4071
ARC/4-900-300T DO400141530006.632900265-15+4071
ARC/4-900-400T KO400143540008.339000266-15+4071
ARC/4-900-400T DO400143540008.339000266-15+4071
ARC/4-900-550T KO400145055001136100375-15+4074
ARC/4-900-550T DO400145055001136100375-15+4074
ARC/4-900-750T KO IE34001450750014.642400385-15+4075
ARC/4-900-750T DO IE34001450750014.642400385-15+4075
ARC/6-900-055T KO4009005501.75815086-15+4063
ARC/6-900-055T DO4009005501.75815086-15+4063
ARC/6-900-075T KO4009157502.112700100-15+4063
ARC/6-900-075T DO4009157502.112700100-15+4063
ARC/6-900-110T KO40092011002.917150113-15+4064
ARC/6-900-110T DO40092011002.917150113-15+4064
ARC/6-900-150T KO40094515003.921550114-15+4064
ARC/6-900-150T DO40094515003.921550114-15+4064
ARC/6-900-220T KO40096022004.825550119-15+4064
ARC/6-900-220T DO40096022004.825550119-15+4064
ARC/4-1000-300T KO400141530006.617800210-15+4076
ARC/4-1000-300T DO400141530006.617800210-15+4076
ARC/4-1000-400T KO400143540008.327900251-15+4076
ARC/4-1000-400T DO400143540008.327900251-15+4076
ARC/4-1000-550T KO400145055001136900277-15+4077
ARC/4-1000-550T DO400145055001136900277-15+4077
ARC/4-1000-750T KO IE34001450750014.645800324-15+4078
ARC/4-1000-750T DO IE34001450750014.645800324-15+4078
ARC/4-1000-1100T KO IE34001460110002155100360-15+4078
ARC/4-1000-1100T DO IE34001460110002155100360-15+4078
ARC/4-1000-1500T KO IE340014601500027.765500473-15+4080
ARC/4-1000-1500T DO IE340014601500027.765500473-15+4080
ARC/6-1000-075T KO4009157502.11165092-15+4068
ARC/6-1000-075T DO4009157502.11165092-15+4068
ARC/6-1000-110T KO40092011002.918250110-15+4068
ARC/6-1000-110T DO40092011002.918250110-15+4068
ARC/6-1000-150T KO40094515003.924150120-15+4069
ARC/6-1000-150T DO40094515003.924150120-15+4069
ARC/6-1000-220T KO40096022004.830000138-15+4070
ARC/6-1000-220T DO40096022004.830000138-15+4070
ARC/6-1000-300T KO40095030006.836100155-15+4070
ARC/6-1000-300T DO40095030006.836100155-15+4070
ARC/4-1250-1100T KO IE34001460110002157700545-15+4084
ARC/4-1250-1100T DO IE34001460110002157700545-15+4084
ARC/4-1250-1500T KO IE340014601500027.775100560-15+4084
ARC/4-1250-1500T DO IE340014601500027.775100560-15+4084
ARC/4-1250-2200T KO IE34001465220003993100570-15+4085
ARC/4-1250-2200T DO IE34001465220003993100570-15+4085
ARC/4-1250-3000T KO IE340014723000056110000600-15+4086
ARC/4-1250-3000T DO IE340014723000056110000600-15+4086
ARC/4-1250-3700T KO IE340014753700066124000620-15+4086
ARC/4-1250-3700T DO IE340014753700066124000620-15+4086
ARC/6-1250-300T KO40095030006.837800230-15+4076
ARC/6-1250-300T DO40095030006.837800230-15+4076
ARC/6-1250-400T KO40095040008.649200240-15+4076
ARC/6-1250-400T DO40095040008.649200240-15+4076
ARC/6-1250-550T KO400950500011.861000250-15+4077
ARC/6-1250-550T DO400950550011.861000250-15+4077
ARC/6-1250-750T KO IE3400960750015.272000258-15+4078
ARC/6-1250-750T DO IE3400960750015.272000258-15+4078
ARC/6-1250-1100T KO IE3400960110002281200268-15+4079
ARC/6-1250-1100T DO IE3400960110002281200268-15+4079
ARC/6-1500A-1500T KO IE3400960110002260000350-15+4089
ARC/6-1500A-1500T DO IE3400960110002260000350-15+4089
ARC/6-1500B-1500T KO IE3400975150002980000350-15+4090
ARC/6-1500B-1500T DO IE3400975150002980000350-15+4090
ARC/6-1500-2200T KO IE3400980220004099000360-15+4091
ARC/6-1500-2200T DO IE3400980220004099000360-15+4091
ARC/6-1500-3000T KO IE34009803000054119000375-15+4092
ARC/6-1500-3000T DO IE34009803000054119000375-15+4092
ARC/6-1500-3700T KO IE34009853700065135000380-15+4093
ARC/6-1500-3700T DO IE34009853700065135000380-15+4093
ARC/8-1500-550T KO400700550012.744800195-15+4079
ARC/8-1500-550T DO400700550012.744800195-15+4079
ARC/8-1500-750T KO IE3400700750016.359700195-15+4080
ARC/8-1500-750T DO IE3400700750016.359700195-15+4080
ARC/8-1500-1100T KO IE3400730110002474000200-15+4081
ARC/8-1500-1100T DO IE3400730110002474000200-15+4081
ARC/8-1500-1500T KO IE3400730150003088500210-15+4081
ARC/8-1500-1500T DO IE3400730150003088500210-15+4081
ARC/8-1500-1800T KO IE34007301850037100000215-15+4082
ARC/8-1500-1800T DO IE34007301850037100000215-15+4082




Modell A B C D E Öffnungsanzahl
KO DO
250
250
292
327
150
360
10
4
315
315
355
386
150
360
10
8
350
350
395
426
200
400
10
8
400
400
450
487
250
450
12
8
450
450
500
537
250
450
12
8
500
500
560
595
300
500
12
12
560
560
620
655
300
550
12
12
630
630
690
725
400
550
12
12
710
710
770
806
400
550
12
16
800
800
860
896
400
550
16
12
900
900
950
1000
400
800
12
12
1000
1000
1100
1100
450
850
12
12
1250
1250
1350
1350
450
900
12
16
1500
1500
1600
1600
500
1000
16
24
